API 594 Dual Plate Wafer Check Valve, 12 Inch, 150 LB, RF

Name: API 594 Dual Plate Wafer Check Valve, 12 Inch, 150 LB, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide API 594 Dual Plate Wafer Check Valves, API 594 Dual Plate Check Valves, 12 Inch, Class 150 LB, RF, ASTM A216 WCB, SS 316, and Wafer RF Ends.

Request a quote

Quick Detail

Type	Wafer Check Valve
Size	12"
Pressure	150LB
Connection	Wafer (RF)
Body Material	A216 WCB + 316
Design Norm	API 594
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API 594
Test & Inspection Code	API 598
Temperature	≤300°C
Applicable Medium	Water, Oil and Gas

Detail Information

API 12" 150 LB Dual Plate Wafer Check Valve (RF)

Introduction

12" 150 LB Wafer Check Valve is made according to API 594. The valve body is made of A216 WCB + 316. It has the structural characteristics of a double plate. Its connection mode is wafer RF type.

Features

1. Wafer structure, short length, small volume, lightweight and convenient installation.;
2. Good sealing performance, long service life, high reliability, and rapid closure of valve disc.

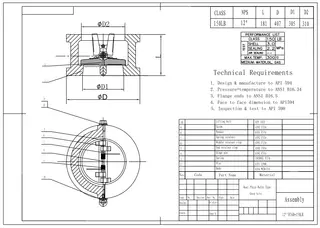

Technical Drawing

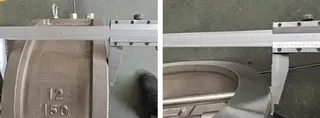

Dimension Checking

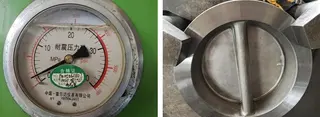

Pressure Testing

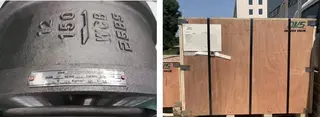

Nameplate & Packing

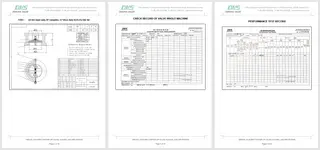

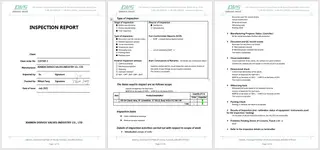

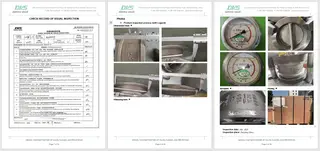

Inspection report
