API 594 Dual Plate Wafer Check Valve, LCC, 10 Inch, 150 LB

Name: API 594 Dual Plate Wafer Check Valve, LCC, 10 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide API 594 Dual Plate Wafer Check Valves, API 594 Check Valves, Dual Plate, ASTM A352 LCC, 10 Inch, Class 150 LB, Wafer RF End, ANSI B16.34.

Request a quote

Quick Detail

Type	Swing Check Valve
Size	4"
Pressure	600 LB
Connection	RF
Body Material	LCC
Design Norm	API 6D
Face to Face Dimension	ASME B16.10
Flange Dimension	ASME B16.5
Test & Inspection Code	API 598
Temperature	-46 - 345 °C
Applicable Medium	Water, Oil and Gas

Detail Information

10" 150 LB Dual Plate Wafer Check Valve LCC API Wafer RF

Introduction

10" 150 LB wafer check valve is made according to API 594 standard. The valve body is made of A352 LCC. It has the structural characteristics of a double plate and built-in type. Its connection mode is Wafer RF.

Features

1. Both horizontal and vertical pipelines can be installed;
2. Safety, compact, light, compact structure and convenient maintenance.

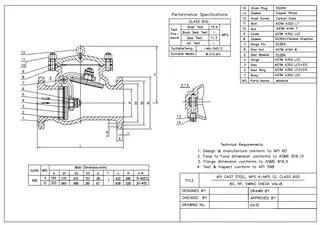

Technical Drawing

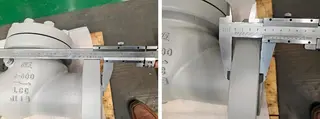

Dimension Checking

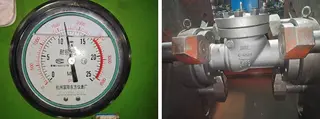

Pressure Testing

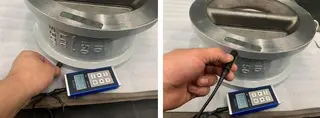

Painting

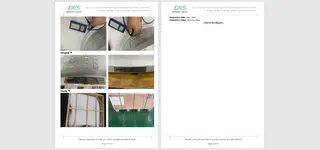

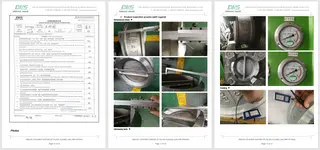

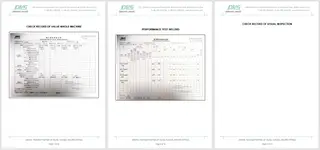

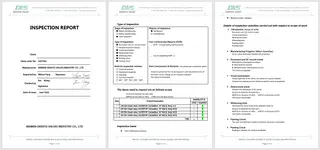

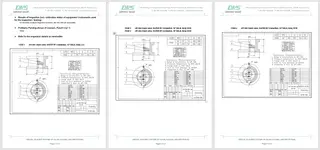

Inspection report

Keywords of API 594 Dual Plate Wafer Check Valve, LCC, 10 Inch, 150 LB

Cast Steel Swing Check Valve
4" Cast Steel Swing Check Valve
600LB Cast Steel Swing Check Valve
API Cast Steel Swing Check Valve
API 6D Swing Check Valve
RF LCC Swing Check Valve
