ASTM A351 CF8M Dual Plate Check Valve, API 594, 10IN, CL150

Name: ASTM A351 CF8M Dual Plate Check Valve, API 594, 10IN, CL150
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASTM A351 CF8M Dual Plate Check Valves, ASTM A351 CF8M Wafer Check Valves, Dual Plate API 594, 10 Inch, DN250, Class 150 LB, PN20, RF End.

Request a quote

Quick Detail

Type	Wafer Check Valve
Size	10"
Pressure	150LB
Connection	Wafer RF
Body Material	A351 CF8M + STL
Design Norm	API594
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API594
Test & Inspection Code	API598
Temperature	≤300°C
Applicable Medium	Water, Oil and Gas

Detail Information

API 594 10" 150 LB Dual Plate Check Valve ASTM A351 CF8M Wafer RF

Introduction

10" 150LB wafer check valve is made according to API 594 standards. The valve body is made of A351 CF8M. It has the structural characteristics of a double plate and built-in type. Its connection mode is wafer RF.

Features

1. Wafer check valve belongs to the automatic valve category and is mainly used on the pipeline with a one-way flow of medium;
2. Wafer structure, short length, small volume, lightweight, convenient installation.

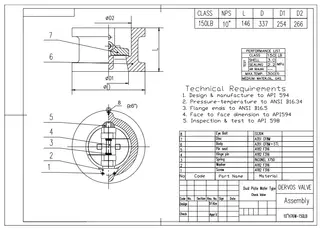

Technical Drawing

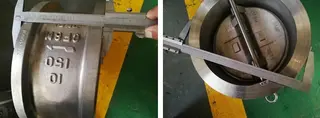

Dimension Checking

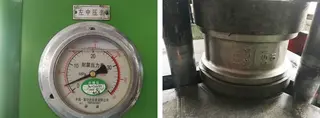

Pressure Testing

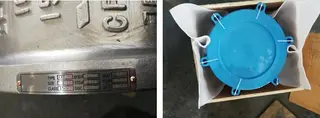

Nameplate & Packing

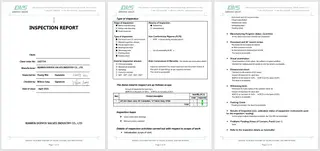

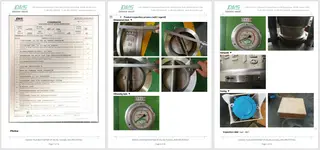

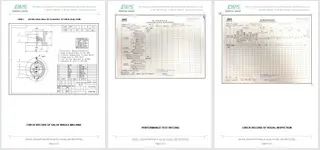

Inspection report
