Dual Plate Wafer Check Valve, 12 Inch, 600 LB, ASTM A216 WCB, API 594

Name: Dual Plate Wafer Check Valve, 12 Inch, 600 LB, ASTM A216 WCB, API 594
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

12-inch 600 LB wafer check valve is made according to API 594 standards. The valve body is made of ASTM A216 WCB+316. It has the structural characteristics of dual plate and wafer type. Its connection mode is RF.

Request a quote

Quick Detail

Product Description

Type	Wafer Check Valve
Size	12 Inch
Pressure	600 LB
Connection	RF
Body Material	ASTM A216 WCB+SS 316
Design Norm	API 594
Pressure-temperature	ANSI B16.34
Flange Ends	ANSI B16.5
Face to Face Dimension	API 594
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

12 Inch 600 LB Dual Plate Wafer Check Valve RF WCB API 594

Features

1. Short structural length, safe and reliable performance, strong anti-interference ability, good rigidity, and convenient installation;

2. The selection range of main component materials is wide, and the range of medium used is wide.

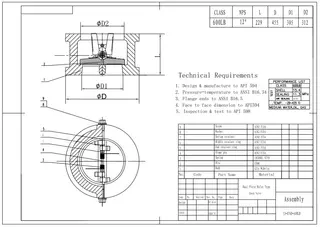

Technical Drawing
