Dual Plate Check Valve, WCB, 8 Inch, 150 LB, API 594, Wafer

Name: Dual Plate Check Valve, WCB, 8 Inch, 150 LB, API 594, Wafer
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide Dual Plate Check Valves, Dual Plate Wafer Check Valves, ASTM A216 WCB, SS 316, 8 Inch, Class 150 LB, DN200, PN20, API 594, and RF Ends.

Request a quote

Quick Detail

Type	Wafer Check Valve
Size	8"
Pressure	150LB
Connection	Wafer Type
Body Material	A216 WCB + 316
Design Norm	API 594
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API 594
Test & Inspection Code	API 6D
Applicable Medium	Water, Oil and Gas

Detail Information

API 8" 150 LB Dual Plate Wafer Check Valve WCB Wafer Type

Introduction

8" 150 LB wafer check valve is made according to API 594 standards. The valve body is made of WCB. It has the structural characteristics of a double plate. And its connection mode is wafer RF type.

Features

1. Sensitive action, good sealing performance, simple and compact overall structure, beautiful appearance;
2. Applicable to building facilities, air conditioning, fire protection, cold water pipes, hot water systems, sewers and water treatment, and general industry.

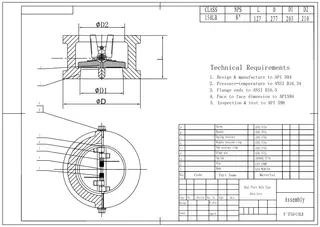

Technical Drawing

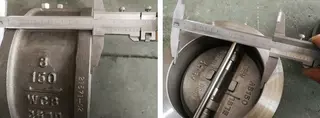

Dimension Checking

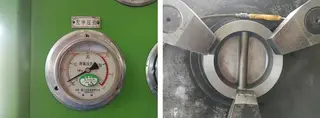

Pressure Testing

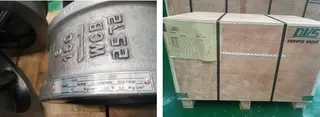

Nameplate & Packing

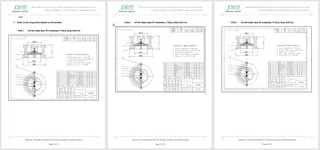

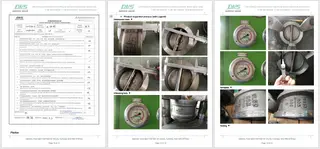

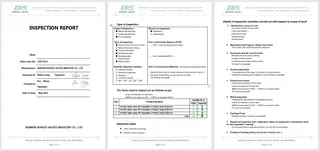

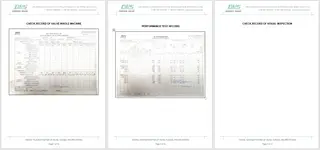

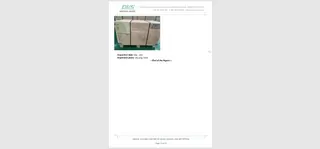

Inspection report

Keywords of Dual Plate Check Valve, WCB, 8 Inch, 150 LB, API 594, Wafer

8" 150LB Wafer Check Valve
Wafer Type Dual Plate Check Valve
API594 API598 Wafer Check Valve
WCB Dual Plate Check Valve
ANSI B16.34 Wafer Check Valve
ANSI B16.5 Dual Plate Check Valve
