Dual Plate Wafer Check Valve, 8 IN, 900 LB, WCB, API 594, RTJ
Key Specifications / Features
8 Inch 900 LB check valve is made according to API 594 standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of double flap, double flange and anti-fire design. Its connection mode is RTJ.
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | 8 Inch |
| Pressure | 900LB |
| Connection | RTJ |
| Body Material | ASTM A216 WCB |
| Design Norm | API 594 |
| Face to Face Dimensions | API 594 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature Rating | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
8 Inch 900 LB Dual Plate Wafer Check Valve RTJ WCB API 594
Features
1. Short structural length, small volume, light weight, fast valve closure, and low water hammer pressure;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.

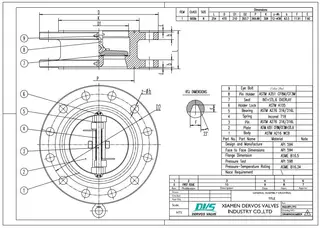

Technical Drawing

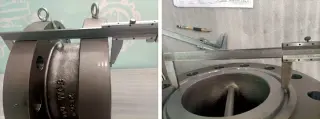

Dimension Checking

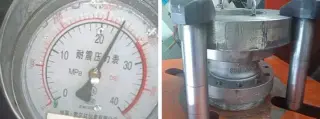

Pressure Testing

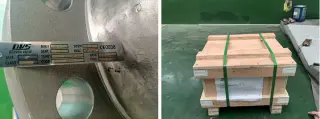

Nameplate & Packing

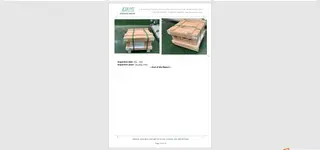

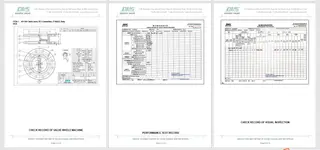

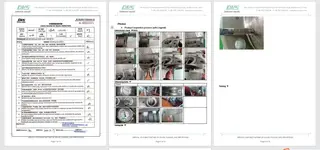

Inspection report
Features
1. Short structural length, small volume, light weight, fast valve closure, and low water hammer pressure;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
