API 594 Dual Plate Wafer Check Valve, A182 F5, 8 Inch, 300 LB
Key Specifications / Features
8 Inch 300 LB check valve is made according to API 594 standard. The valve body is made of A182 F5+SS 316. It has the structural characteristics of a double disc and built-in type. Its connection mode is wafer.
Request a quote
Quick Detail
Product Description
| Type | Wafer Check Valve |
| Size | 8 Inch |
| Pressure | 300 LB |
| Connection | Wafer |
| Body Material | A182 F5+SS316 |
| Design Norm | API 594 |
| Pressure-Temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to Face Dimension | API 594 |
| Test & Inspection Code | API 598 |
| Temperature | ≤300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
8 Inch 300 LB Dual Plate Wafer Check Valve API 594 A182 F5
Features
1. Short structural length, small volume, lightweight, quick valve closure, low water hammer pressure;
2. Smooth flow channel, low fluid resistance, sensitive action, good sealing performance, short valve disc stroke, and low closing impact force.

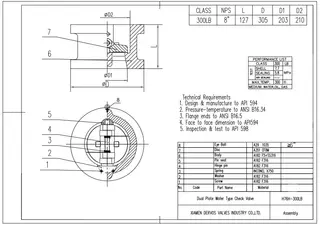

Technical Drawing

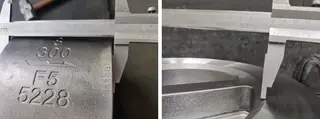

Dimension Checking

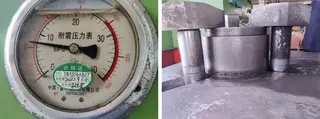

Pressure Testing

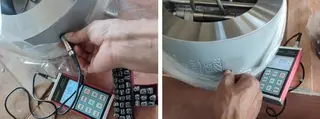

Painting

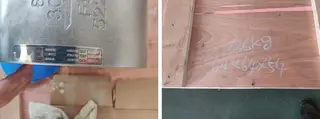

Nameplate & Packing

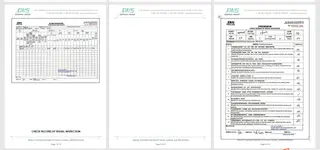

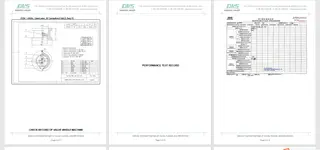

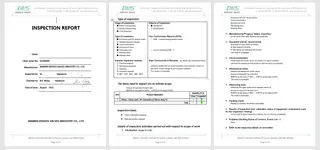

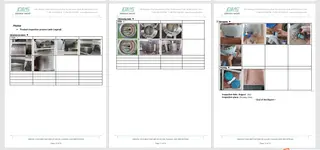

Inspection report
Features
1. Short structural length, small volume, lightweight, quick valve closure, low water hammer pressure;
2. Smooth flow channel, low fluid resistance, sensitive action, good sealing performance, short valve disc stroke, and low closing impact force.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
