API 594 Swing Check Valve, 20 Inch, 900 LB, ASTM A216 WCB, RTJ
Key Specifications / Features
20-inch 900 LB swing check valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of swing type and double disc wafer type. Its connection mode is RTJ.
Request a quote
Quick Detail
Product Description
| Type | Swing Check Valve |
| Size | 20 Inch |
| Pressure | 900 LB |
| Connection | RTJ |
| Body Material | A216 WCB+316 |
| Design Norm | API 594 |
| Pressure-temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to Face Dimension | API 594 |
| Test & Inspection Code | API 598 |
| Temperature | ≤300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
RTJ Connection, 20 Inch 900 LB Swing Check Valve, Body WCB, API 594
Features
1. Simple structure, high reliability, and convenient maintenance;
2. Easy to operate, unobstructed flow channels, low fluid resistance, and low-pressure loss.

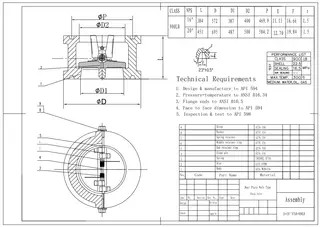

Technical Drawing

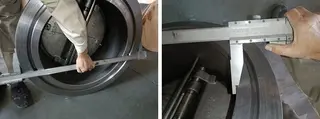

Dimension Checking

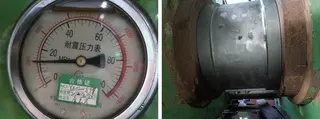

Pressure Testing

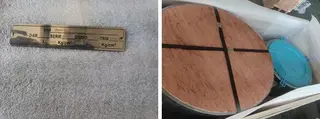

Nameplate & Packing

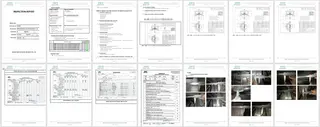

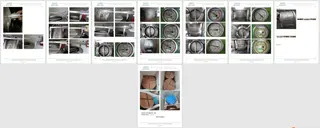

Inspection report
Features
1. Simple structure, high reliability, and convenient maintenance;
2. Easy to operate, unobstructed flow channels, low fluid resistance, and low-pressure loss.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
