API 609 Concentric Butterfly Valve, Ductile Iron, 4 IN, CL150
Key Specifications / Features
The 4-inch, 150 LB concentric butterfly valve is designed according to API 609 standards. Constructed with a ductile iron body, it features a centric design and a structural length of 52mm. The valve has a lug connection and operates using a worm gear with a sprocket and lock mechanism, ensuring secure and efficient control. As a leading butterfly valve manufacturer in China, we provide reliable and high-performance solutions for various applications.
Request a quote
Quick Detail
| Type | Concentric Butterfly Valve |
| Size | 4 Inch, DN100 |
| Pressure | Class 150 LB, PN20 |
| Connection | Lug |
| Operation | Worm Gear with Sprocket and Lock |
| Body Material | Ductile Iron |
| Design Norm | API 609 |
| End Flange | ASME B16.5 |
| Face to Face | EN 558-1 |
| Top Flange | ISO 5211 |
| Test & Inspection Code | EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
Ductile Iron Concentric Butterfly Valve, API 609, 4 Inch/DN100, 150 LB.
2. Compact and lightweight, requiring less installation space, ideal for areas with limited room for installation.
Features
1. Simple design with minimal components, making it easy to manufacture and maintain.2. Compact and lightweight, requiring less installation space, ideal for areas with limited room for installation.

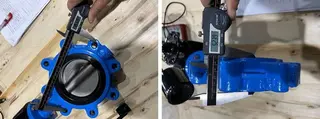

Dimension Checking

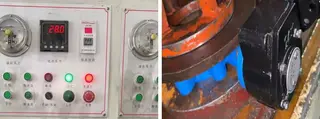

Pressure Testing

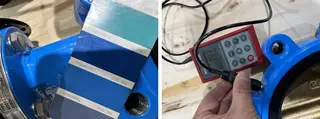

Painting

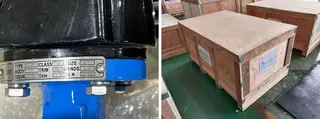

Nameplate & Packing

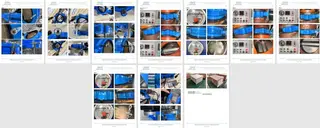

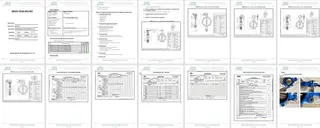

Inspection Report
