Double Eccentric Lug Butterfly Valve, 4 Inch, 150 LB, CF8M
Key Specifications / Features
4 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of CF8M. It has the structural characteristics of double eccentric, high performance, and zero leakage. Its connection mode is lug. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Butterfly Valve |
| Size | 4 Inch |
| Pressure | 150 LB |
| Connection | Lug |
| Operation | Lever |
| Body Material | CF8M |
| Design Norm | API 609 |
| Flange Size | ASME B16.5 |
| Temperature & Pressure | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 180°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4 Inch 150 LB Double Eccentric Butterfly Valve CF8M Lug API 609 Lever
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.

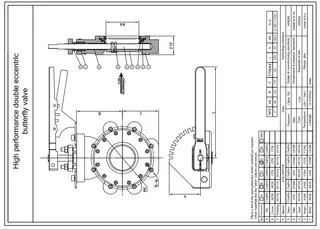

Technical Drawing
Dimension Checking

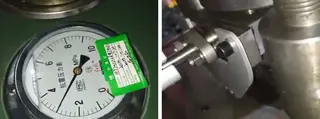

Pressure Testing

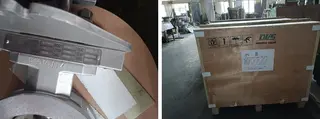

Nameplate & Packing

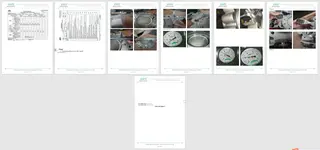

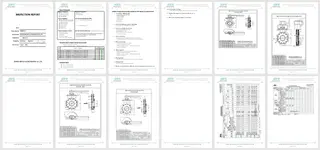

Inspection report
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
