API 609 Concentric Butterfly Valve, DN500, PN10, Ductile Iron
Key Specifications / Features
8 Inch 1500 LB gate valve is made according to API 609 standard. The valve body is made of DI+EPDM. It has the structural characteristics of center line pattern. Its connection mode is EN 1092-2. And it has turbine operation mode.
Request a quote
Detail Information
Ductile Iron Concentric Butterfly Valve API 609 PN10 DN500
Product Description
Features
1. Simple structure and convenient manufacturing;
2. The channel design is a full bore structure, ensuring the flow area of the valve.

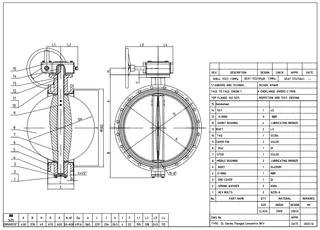

Technical Drawing

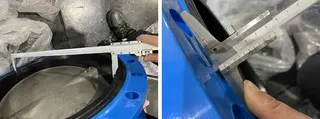

Dimension Checking

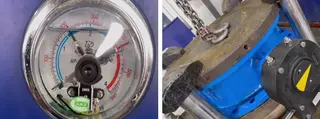

Pressure Testing

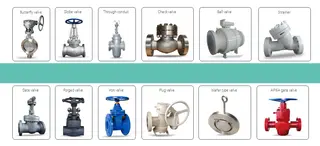

Our Main Product Range
Product Description
| Type | Butterfly Valve |
| Size | DN500 |
| Pressure | PN10 |
| Connection | EN1092-2 |
| Operation | Turbine Operation |
| Body Material | DI+EPDM |
| Design Norm | API609 |
| Face to Face | EN558-1 |
| End Flange | EN1092-2 PN10 |
| Top Flange | ISO5211 |
| Test & Inspection Code | EN12266 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Simple structure and convenient manufacturing;
2. The channel design is a full bore structure, ensuring the flow area of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Our Main Product Range
