GGG40 Concentric Butterfly Valve, DN100, PN10, API 609
Key Specifications / Features
DN100 PN10 butterfly valve is made according to API 609 standard. The valve body is made of GGG40 + EPDM. It has the structural characteristics of medium line type. Its connection mode is EN 1092-2B. And it has worm gear operation mode.
Request a quote
Quick Detail
Product Description
| Type | Butterfly Valve |
| Size | DN100 |
| Pressure | PN10 |
| Connection | EN1092- 2 B |
| Operation | Worm Gear |
| Body Material | GGG40 + EPDM |
| Design Norm | API 609 |
| End Flange | EN 1092 |
| Top Flange | ISO 5211 |
| Face to Face | EN 558-1 |
| Test & Inspection Code | EN12266 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN100 PN10 Concentric Butterfly Valve GGG40 API 609 Worm Gear
Features
1. The valve stem axis, butterfly plate center, and body center are in the same position;
2. Simple and convenient structure, reducing the flow resistance of fluid passing through the valve.

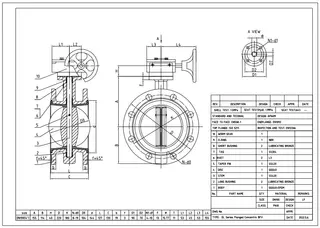

Technical Drawing

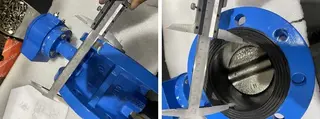

Dimension Checking

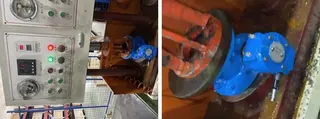

Pressure Testing

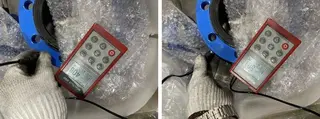

Painting

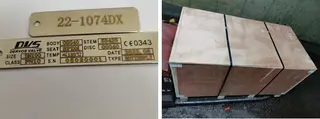

Nameplate & Packing

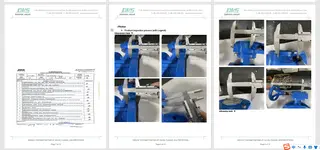

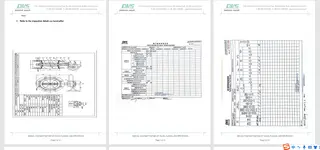

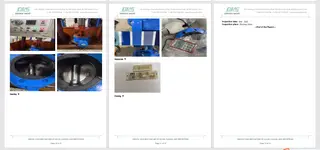

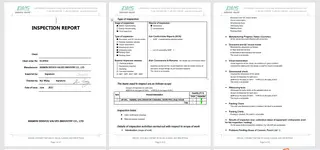

Inspection report
Features
1. The valve stem axis, butterfly plate center, and body center are in the same position;
2. Simple and convenient structure, reducing the flow resistance of fluid passing through the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
