DIN 3352 F4 Wedge Gate Valves, ASTM A216 WCB, PN16, RF, OS&Y

The DIN 3352 F4 Wedge Gate Valves are high-quality gate valves with a robust ASTM A216 WCB cast carbon steel body, suitable for a wide range of industrial applications. These valves are available in customized sizes and are designed to meet the PN16 pressure rating and Class 150 LB pressure class requirements. They feature RF flanged ends for secure and reliable connections and are operated by a handwheel.

Product Name: DIN 3352 F4 Wedge Gate Valve, OS&Y
Design Standard: DIN 3352 F4
Body Material: ASTM A216 WCB
Size: Customized
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Wedge Gate Valves are engineered to limit the leakage of volatile organic compounds (VOCs) to less than 100 parts per million (ppm). Comprehensive baseline laboratory tests, including static and cycle testing, have been conducted to identify the critical design parameters required for achieving low-emission sealing in both the stem packing and bonnet gasket areas. Additionally, an in-house testing procedure has been established and is regularly executed to ensure that the standard design and manufacturing processes consistently result in a maximum VOC leakage of 100 ppm for Wedge Gate Valves before they are shipped.

Technical Specification

» Type: Wedge Gate Valve
» Nominal Diameter: DN50-DN1000
» Design Pressure: PN6-PN16
» Body/Bonnet/Wedge: Cast Steel (EN 1.0619), Stainless Steel (EN 1.4308; EN 1.4408), Alloy Steel EN 1.7335 (WC6)
» Stem: X20Cr13 or EN 1.4021, Stainless Steel (EN 1.4308; EN 1.4408)
» Seat: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, BW
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Structural Formation: BB-BG-OS & Y
» Design Standard: DIN 3352
» Face-to-Face Dimension: According to EN 558-1 15 (DIN 3202 F5 series)
» Flange Ends: DIN 2543 to 2547, EN 1092-1, GOST 12815, GOST 12819
» Butt Welded End: EN 12627
» Test & Inspection: DIN 3230

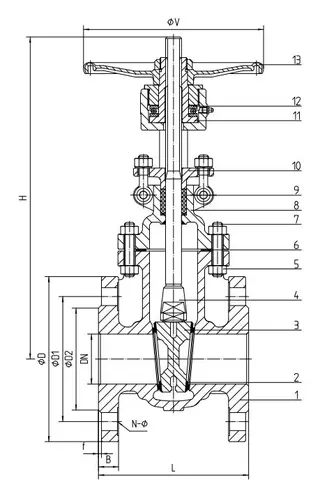

Structural Diagram

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
» Grub screw: Secures yoke nut in the bonnet
» Grease nipple: Supplies lubricant to the mating parts
» OS&Y, Outside Stem and Yoke
» Metal-sealed, Trim # 1, #5, #8, #10 and etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
