Forged Steel Globe Valve, API 602, ASTM A105N, DN15, PN40

Name: Forged Steel Globe Valve, API 602, ASTM A105N, DN15, PN40
SKU: Kelly-GLV-20240810-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The DN15 PN40 Globe Valve is meticulously crafted in accordance with the API 602 standard, ensuring reliable performance and durability. The valve body is constructed from ASTM A105N, with a Stellite (STL) overlay, providing enhanced resistance to wear and corrosion. This valve features a plug-type disc design, along with a backseat and valve seat overlay welded with Stellite for added longevity. The valve's connection type conforms to the EN 1092-1 B1 standard, ensuring compatibility with various piping systems. Designed for easy operation, it utilizes a handwheel mechanism for precise control. This robust globe valve is ideal for high-pressure applications, offering dependable sealing and long-term reliability in demanding environments.

Request a quote

Quick Detail

Type	Forged Steel Globe Valve
Size	DN15
Pressure	PN40
Connection	EN1092-1 B1
Operation	Handwheel
Body Material	ASTM A105N+STL
Design Norm	API 602
Face to Face	EN 558
Flange Dimension	EN 1092
Material	AISI/ASTM

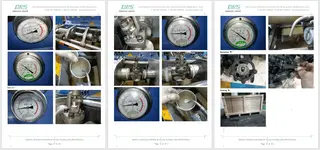

Test & Inspection Code	EN 12266
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

ASTM A105N Forged Steel Globe Valve, API 602, DN15, PN40, EN1092-1 B1 Connection

Features

1. Forged steel construction ensures high strength and resistance to cracking, fatigue, and wear, making it ideal for demanding applications.

2. Self-tightening sealing structure prevents leaks, even under high pressures and temperatures.
