API 602 Forged Steel Globe Valves, A105N, DN40, PN6, OS&Y

Name: API 602 Forged Steel Globe Valves, A105N, DN40, PN6, OS&Y
SKU: Kelly-GLV-20241123-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The DN40 PN6 forged steel globe valve is manufactured to the API 602 standard, featuring a valve body made of ASTM A105N with STL. This valve is designed with a bolted bonnet (BB) and an outside screw and yoke (OS&Y) configuration. It has a raised face (RF) connection and operates with a handwheel for manual control, ensuring reliable performance in various industrial applications.

Request a quote

Quick Detail

Type	Forged Steel Globe Valve
Size	DN40
Pressure	PN6
Connection	RF
Operation	Hand Wheel
Body Material	ASTM A105N + STL
Design Norm	API 602
Face to Face	EN 558
Flange Dimension	EN 1092
Material	AISI / ASTM
Test & Inspection Code	EN 12266
Applicable Medium	Water, Oil and Gas

Detail Information

ASTM A105N Globe Valves, API 602, DN40, PN6.

Features

1. Crafted from forged steel, these valves provide exceptional mechanical strength and impact resistance, ensuring reliable performance in high-pressure and high-temperature environments for extended service life.

2. With a compact design, these valves are ideal for installation in confined spaces, making them highly versatile for both industrial and residential applications.

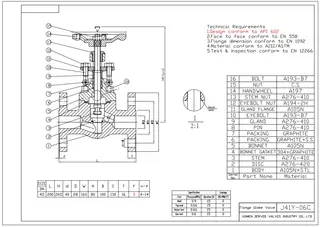

Technical Drawing
