API 602 Forged Steel Globe Valve, 1/2 Inch, CL800, A105N, SW

Name: API 602 Forged Steel Globe Valve, 1/2 Inch, CL800, A105N, SW
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

1/2 Inch CL800 globe valve is made according to API 602 standards. The valve body is made of ASTM A105N+13CR. It has the structural characteristics of BB, OS&Y. Its connection mode is SW. And it has hand wheel operation mode.

Request a quote

Quick Detail

Product Description

Type	Globe Valve
Size	1/2 Inch
Pressure	CL800
Connection	SW
Operation	Hand Wheel
Body Material	ASTM A105N+13CR
Design Norm	API 602
Face to Face Dimensions	MFG'S
End Connection	ASME B16.11
Pressure-temperature	ASME B16.34
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

1/2 Inch CL800 Forged Steel Globe Valve SW A105N API 602

Features

1. Forged steel materials have good corrosion resistance and can resist the erosion of various chemical media, making them suitable for pipeline systems with corrosive media;
2. Small opening and closing force, lightweight and flexible operation, simple structure, reliable operation, low failure rate, able to work stably for a long time.

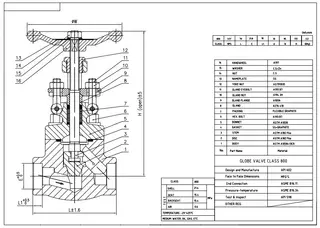

Technical Drawing
