Dual Plate Wafer Check Valve, API 594, A350 LF2, 4 IN, 150 LB
Key Specifications / Features
4 Inch 150 LB check valve is made according to API 594 standard. The valve body is made of ASTM A350 LF2+316. It has the structural characteristics of dual plate. Its connection mode is wafer.
Request a quote
Quick Detail
Product Description
| Type | Check Valve |
| Size | 4 Inch |
| Pressure | 150 LB |
| Connection | Wafer |
| Body Material | A350 LF2+316 |
| Design Norm | API 594 |
| Pressure-temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to Face Dimension | API 594 |
| Test & Inspection Code | API 598 |
| Corrosion Allowance | 6mm |
| Material | NACE MR0175 |
| Temperature | ≤ 300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4 Inch 150 LB Dual Plate Wafer Type Check Valve LF2 API 594
Features
1. Short structural length, small volume, and light weight;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.

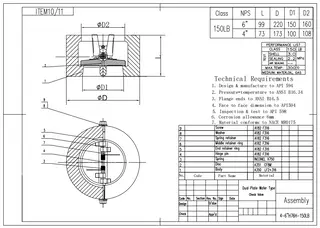

Technical Drawing

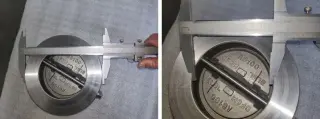

Dimension Checking

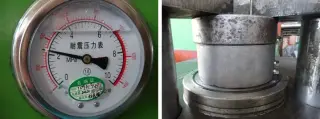

Pressure Testing

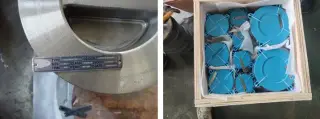

Nameplate & Packing

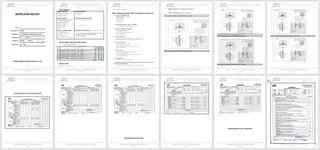

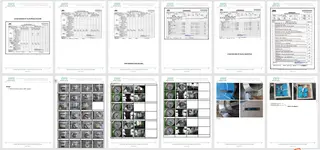

Inspection report
Features
1. Short structural length, small volume, and light weight;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
