Dual Plate Check Valves, API 594, A352 LCC, 20 IN, 600 LB

Name: Dual Plate Check Valves, API 594, A352 LCC, 20 IN, 600 LB
SKU: Kelly-CV-20241108-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 20-inch 600 LB dual plate wafer-type check valve is designed in accordance with the API 594 standard. Constructed with a valve body made of ASTM A352 LCC+13Cr, it features a double disc, wafer-style, and built-in design. The valve is equipped with double-flanged connections, ensuring a secure and reliable installation. This design provides excellent performance in controlling backflow while maintaining durability in demanding environments.

Request a quote

Quick Detail

Type	Dual Plate Wafer Type Check Valve
Sizes	20 Inch, DN500
Pressure Rating	Class 600 LB, PN100
Connection	Double Flanged
Body Material	ASTM A352 LCC+13Cr
Design Norm	API 594
Pressure-temperature	ANSl B16.34
Flange Ends	ANSl B16.5
Face to Face Dimension	APl 594
Test & Inspection Code	API 598
Temperature	-29 - 345°C
Applicable Medium	Water, Oil and Gas

Detail Information

Dual Plate Wafer Check Valve, API 594 ASTM A352 LCC Body, Double Flanged.

Features

1. Can be installed horizontally or vertically, offering strong adaptability for various pipeline layouts and flow directions.

2. Simple design with few moving parts, resulting in a low failure rate, easy maintenance, and extended service life.

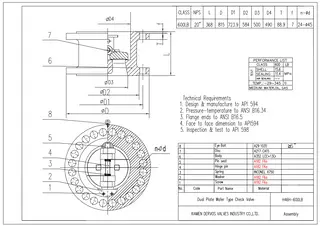

Technical Drawing
