Dual Plate Check Valve, ASTM A182 F51, 2IN, 1500 LB, API 594

Name: Dual Plate Check Valve, ASTM A182 F51, 2IN, 1500 LB, API 594
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide Dual Plate Check Valves, Dual Plate Check Valves, 2 Inch, Class 1500 LB, API 594, DN50, PN250, ASTM A182 F51, Built-in Type, Lug / Wafer Ends.

Request a quote

Quick Detail

Type	Wafer Check Valve
Size	2"
Pressure	1500LB
Connection	Lug Type
Body Material	F51
Design Norm	API594
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API594
Test & Inspection Code	API598
Temperature	≤300°C
Applicable Medium	Water, Oil and Gas

Detail Information

Lug Type 2" 1500 LB Dual Plate Wafer Check Valve API 594

Introduction

2" 1500 LB Wafer Check Valve is made according to API 594 standards. The valve body is made of ASTM A182 F51. It has the structural characteristics of a dual plate and built-in type. Its connection code is lug-type.

Features

1. Short structure length, good rigidity;
2. Safe and reliable operation, strong anti-interference ability;
3. Good sealing effect, no leakage in the test.

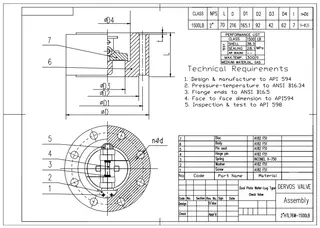

Technical Drawing

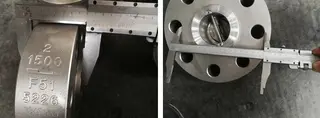

Dimension Checking

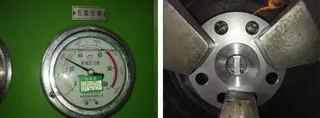

Pressure Testing

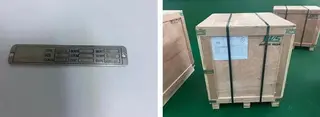

Nameplate & Packing

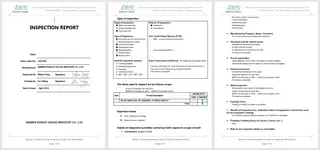

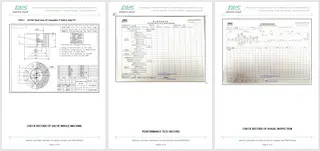

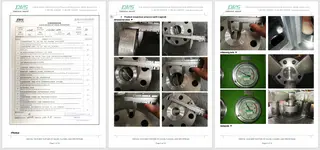

Inspection report

Keywords of Dual Plate Check Valve, ASTM A182 F51, 2IN, 1500 LB, API 594

Lug Type Dual Plate Wafer Check Valve
2" Dual Plate Wafer Check Valve
1500LB Wafer Check Valve
API594 Wafer Check Valve
Cast Iron Dual Plate Check Valve
Wafer Type Spring Loaded Check Valve
