Double Eccentric Lug Butterfly Valve, API 609, 4 Inch, 150 LB

Name: Double Eccentric Lug Butterfly Valve, API 609, 4 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Double Eccentric Lug Butterfly Valve Provider: Double Eccentric Butterfly Valve, Two-offset, API 609, ASTM A216 WCB, 4 Inch, Class 150 LB, Lug Type, RF.

Request a quote

Detail Information

Double Eccentric Butterfly Valve Lug Type, 4 inch, 150 LB, Lug Type Butterfly Valves, Two-offset Butterfly Valves, ASTM A216 WCB Valves, Actuated Butterfly Valves.

Quick Detail

Type	Butterfly Valve
Nominal Diameter	4 Inch
Nominal Pressure	Class 150 LB
Construction	Lug Type, Bi-dimensional Seals
Connection	RF
Operation	Gearbox
Design & Manufacture	API 609
End to End Dimension	ASME B16.10
Flange Dimension	ASME B16.5
Body Material	ASTM A216 WCB
Disc Material	ASTM A351 CF8M
Media	W.O.G

Features
•Bidirectional Sealing
•Replaceable Seat
•Two-offset design
•Minimal switching friction
•Easy repair and maintenance
•Reliability and long service life

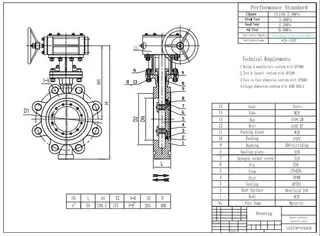

Technical Drawing

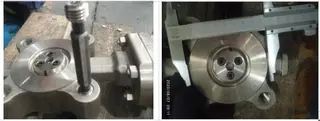

Dimensional Check

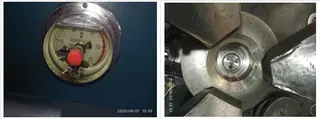

Witness Tests

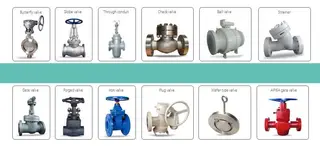

Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
