ASTM A351 CF8M Lug Butterfly Valve, 5 Inch, 150 LB, API 609

Name: ASTM A351 CF8M Lug Butterfly Valve, 5 Inch, 150 LB, API 609
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

5 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of CF8M. It has the structural characteristics of dual eccentric and high performance. Its connection mode is RF. And it has turbine operation mode.

Request a quote

Quick Detail

Product Description

Type	Butterfly Valve
Size	5 Inch
Pressure	150 LB
Connection	RF
Operation	Turbine Operation
Body Material	ASTM A351 CF8M
Design Norm	API 609
Temperature & pressure	ASME B16.34
Flange Size	ASME B16.5
Test & Inspection Code	API 598
Temperature	-29 - 180°C
Applicable Medium	Water, Oil and Gas

Detail Information

5 Inch 150 LB Double Eccentric Butterfly Valve Lug CF8M API 609 Turbine

Features

1. Good stability and long service life;
2. Flexible, labor-saving, and convenient operation.

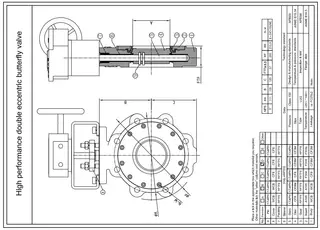

Technical Drawing
