ASTM A351 CF8M Wafer Check Valve, 4 Inch, 150 LB, API 594
Key Specifications / Features
4 Inch 150 LB wafer check valve is made according to API 594 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a double disc and wafer type. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Wafer Check Valve |
| Size | 4 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Body Material | A351 CF8M |
| Design Norm | API 594 |
| Pressure- temperature | ANSI B16.34 |
| Flange Ends | ANSI B16.5 |
| Face to face Dimension | API594 |
| Test & Inspection Code | API 598 |
| Temperature | -20 - 200°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4 Inch 150 LB Dual Plate Wafer Check Valve RF CF8M API 594
Features
1. Short stroke, low impact force, sensitive action, and good sealing performance.
2. The overall structure is simple and compact, with a beautiful appearance, long service life, and high reliability.

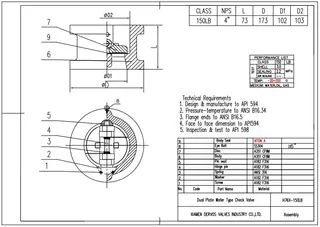

Technical Drawing

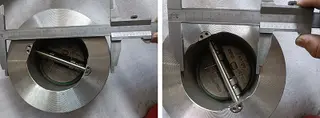

Dimension Checking

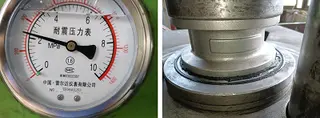

Pressure Testing
Packing

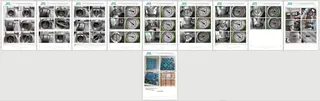

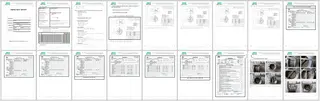

Inspection report
Features
1. Short stroke, low impact force, sensitive action, and good sealing performance.
2. The overall structure is simple and compact, with a beautiful appearance, long service life, and high reliability.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
