ASTM A182 F316 Needle Valve, ASME B16.34, 6000 PSI, 1/2 Inch

Name: ASTM A182 F316 Needle Valve, ASME B16.34, 6000 PSI, 1/2 Inch
SKU: Kelly-NDV-20241114-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This 1/2-inch needle valve, rated for 6000 PSI, is manufactured to ASME B16.34 standards. Constructed with a durable stainless steel ASTM A182 F316 body, it features an inlet and outlet size of 1/2 inch (NPTM and NPTH, respectively), along with a 1/4-inch NPT discharge port. The valve is equipped with an NPT connection and is operated via a lever, providing reliable performance under high-pressure conditions.

Request a quote

Quick Detail

Type	Needle Valve
Size	1/2 Inch, DN15
Pressure	6000 PSI
Connection	NPT
Operation	Lever
Body Material	ASTM A182 F316
Design Norm	ASME B16.34
Face to Face Design	Manufactory Standard
Connection Dimensions	ASME B 1.20.1
Test & Inspection Code	API 589
Applicable Medium	Water, Oil and Gas

Detail Information

ASTM A182 F316 Needle Valve, ASME B16.34 Design, 6000 PSI, 1/2 Inch.

Features

1. Compact and Durable: Designed for exceptional earthquake resistance, ensuring the unit remains secure and unaffected by vibrations or impacts within the system.

2. Efficient and Versatile: Its simple structure and small size make it easy to install in any part of the system, making it ideal for space-constrained pipeline installations.

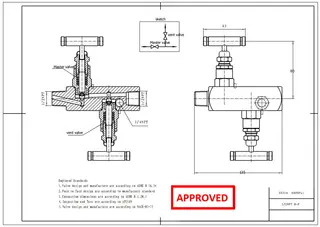

Technical Drawing
