ASTM A105 Needle Valve, 1/2 Inch, PN100, ASME B16.34, NPT
Key Specifications / Features
1/2 Inch PN100 needle valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105. It has the structural characteristics of a pass-through type. Its connection mode is M/F NPT. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Needle Valve |
| Size | 1/2 Inch |
| Pressure | PN100 |
| Connection | M/F NPT |
| Operation | Lever |
| Body Material | ASTM A105 |
| Design Norm | ASME B16.34 |
| Face to Face | Manufactory Standard |
| Connection Dimensions | ASME B 1.20.1 |
| Test & Inspection Code | API 598 |
| Valve Design and Manufacture | NACE-01-75 |
| Temperature | ≤ 180°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1/2 Inch PN100 Needle Valve, M/F NPT Connection, Body A105, ASME B16.34
Features
1. Small in size and light in weight, making it easy to install in limited-space pipeline systems without taking up too much space;
2. Low manufacturing cost, economical and practical, suitable for large-scale application.
Technical Drawing

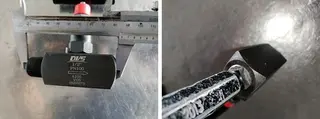

Dimension Checking

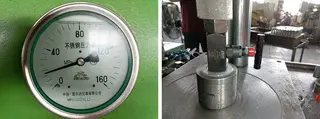

Pressure Testing

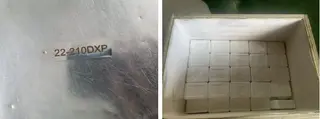

Nameplate & Packing
Inspection report
Features
1. Small in size and light in weight, making it easy to install in limited-space pipeline systems without taking up too much space;
2. Low manufacturing cost, economical and practical, suitable for large-scale application.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
