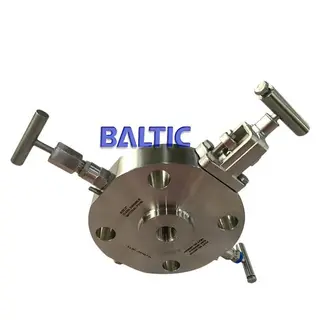

ASTM A182 F316 Monoflange Valve, Needle Type, CL900 LB, DBB
Key Specifications / Features
The ASTM A182 F316 Monoflange Valve Plant offers high-quality needle type, double block & bleed valves crafted from forged stainless steel. These valves are designed for customized sizes, ensuring they meet specific requirements. They are rated for Class 900 LB and PN150 pressure classes, making them suitable for high-pressure applications. The valves feature threaded ends for easy installation and reliable performance.
Detail Information
Product Name: DBB Monoflange Valve, Needle Type
Body Material: ASTM A182 F316
Size: Customized
Pressure: Class 900 LB, PN150
End Connection: Threaded
Operation: Manual
Temperature Range: -38°C to 480°C
This valve is designed with an integrated forging process, combining the valve body, process, and instrument piping into a single unit. The high-strength valve cap design effectively prevents the valve stem from blowing out. The valve features a diverse combination of needle-shaped ball valve and needle valve designs. An extended valve body is available for selection to achieve the required insulation distance. Each valve includes a traceable release port with a plug. Every valve undergoes a sealing test with 7MPa nitrogen gas before leaving the factory, as well as a sealing test with 5% nitrogen gas at 1.5 times the rated working pressure.
Product Parameters
» Product Model: SS BB-900RJ-MG20-PC
» Pressure Range: 150LB to 4500LB
» Temperature Range: -38°C to 480°C (-38°F to 896°F)
» Connection Port: RF + FNPT End
» Work Pressure: Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB, 4500 LB
» Filler Material Temperature Ranges:
» PTFE Filler: -38°C to 180°C (-100°F to 356°F)
» PPL Filler: -38°C to 280°C (-100°F to 536°F)
» Graphite Filler: -24°C to 480°C (-75°F to 896°F)
» Main Material: Stainless Steel 316, Nickel Alloy, and other special materials
» Connection Method: Flange
