ASTM A105N Floating Ball Valve, 1 Inch, CL150, API 6D
Key Specifications / Features
1 Inch 150 LB ball valve is made according to API 6D standard. The valve body is made of ASTM A105N. It has the structural characteristics of full bore, floating ball, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF. And it has lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 1 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A105N |
| Design Norm | API 6D |
| Test & Inspection Code | ASME API 598 |
| Face to Face | ASME B16.10 |
| End Flange Dimension | ASME 16.5 |
| Fire Safe | API 607, Anti-static, Anti-blowout Stem |
| Material | NACE MR0175 |
| Temperature | -29 - 150°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch 150 LB Floating Ball Valve RF API 6D Lever A105N
Features
1. It is mainly used to cut off, distribute, and change the direction of medium flow;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.

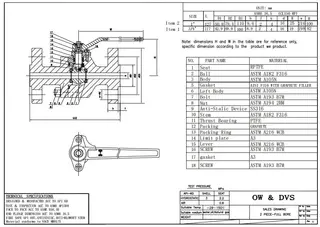

Technical Drawing

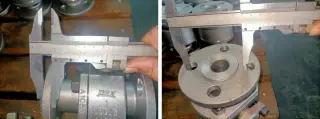

Dimension Checking

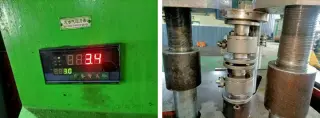

Pressure Testing

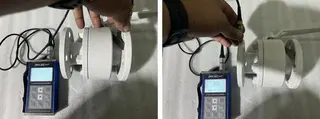

Painting

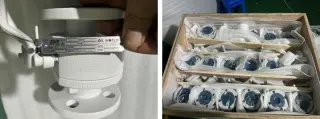

Nameplate & Packing

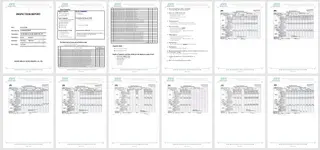

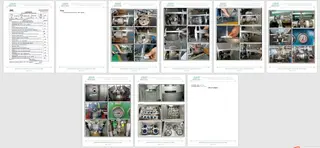

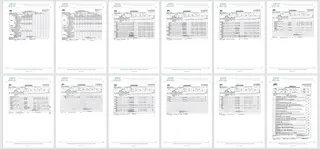

Inspection report
Features
1. It is mainly used to cut off, distribute, and change the direction of medium flow;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
