ASTM A105N Floating Ball Valve, 1 IN, 150 LB, API 6D, Lever

Name: ASTM A105N Floating Ball Valve, 1 IN, 150 LB, API 6D, Lever
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

1 Inch 150 LB ball valve is made according to API 6D standards. The valve body is made of ASTM A105N. It has the structural characteristics of a full bore, floating ball, anti-fire, anti-static and anti-flying valve stem design. Its connection mode is RF. And it has a lever operation mode.

Request a quote

Quick Detail

Product Description

Type	Ball Valve
Size	1"
Pressure	150LB
Connection	RF
Operation	Lever
Body Material	ASTM A105N
Design Norm	API 6D
Temp. & Pressure	ASME B16.34
Face to Face	ASME B16.10
End Flange Dimension	ASME 16.5
Fire Safe	API 607
Anti-static, Anti-blowout Stem Materials	NACE MR0175
Temperature	-29 ~ 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

1 Inch 150 LB Floating Ball Valve RF A105N API 6D Lever

Features

1. Small size, lightweight, simple structure, and good sealing performance;
2. Not easily eroded by media, easy to operate and maintain.

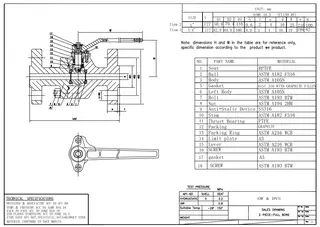

Technical Drawing
