ASTM A216 WCB Trunnion Ball Valve, 16 Inch, 150 LB, API 6D
Key Specifications / Features
16 Inch 150 LB ball valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a full bore, fixed ball, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF. And it has turbine operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 16 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Operation | Turbine Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Test & Inspection Code | ASME API 598 |
| Face to Face | ASME B16.10 |
| End Flange Dimension | ASME 16.5 |
| Fire Safe | API 607, Anti-static, Anti-blowout Stem |
| Material | NACE MR0175 |
| Wall Thickness | ASME B16.34 |
| Temperature | -29 - 150°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
API 6D 16 Inch 150 LB Trunnion Mounted Ball Valve RF WCB Turbine
Features
1. Easy to operate, reliable sealing performance, and flexible operation;
2. Low fluid resistance, tight and reliable, with good sealing performance.

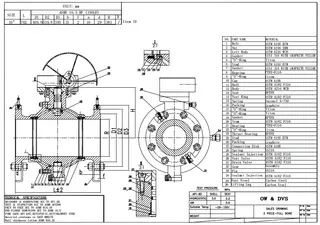

Technical Drawing

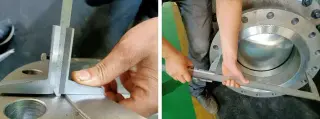

Dimension Checking

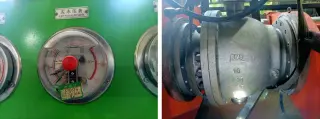

Pressure Testing

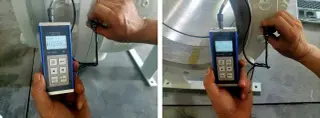

Painting

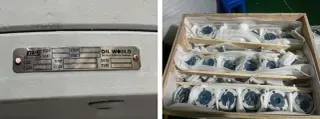

Nameplate & Packing

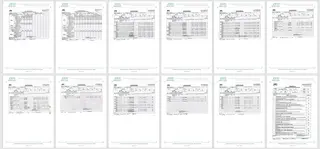

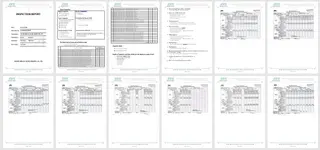

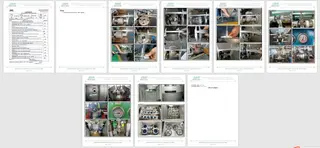

Inspection report
Features
1. Easy to operate, reliable sealing performance, and flexible operation;
2. Low fluid resistance, tight and reliable, with good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
