API 602 Lift Check Valve, DN25, PN16, ASTM A105N, BSP
Key Specifications / Features
DN25 PN16 lift check valve is made according to API 602 standard. The valve body is made of ASTM A105N + SS 316. It has the structural characteristics of lift type. Its connection mode is BSP.
Request a quote
Quick Detail
Product Description
| Type | Lift Check Valve |
| Size | DN25 |
| Pressure | PN16 |
| Connection | BSP |
| Body Material | A105N+SS316 |
| Design Norm | API 602 |
| Face to Face Dimensions | MFG'S |
| End Connection | ISO 7-1 |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN25 PN16 Lift Check Valve, Body A105N, BSP Connection, API 602
Features
1. It can be installed horizontally or vertically to meet the installation requirements of different pipeline systems;
2. Low fluid resistance and pressure loss contribute to improving system efficiency.

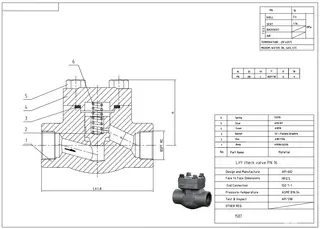

Technical Drawing

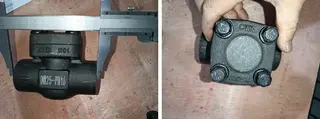

Dimension Checking

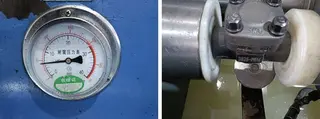

Pressure Testing

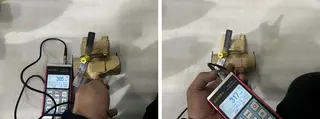

Painting

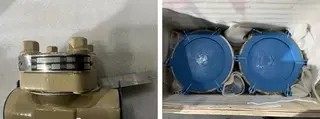

Nameplate & Packing

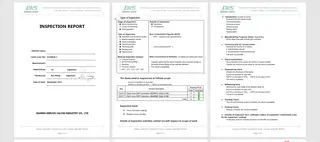

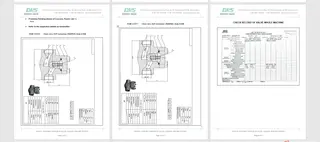

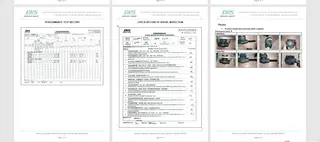

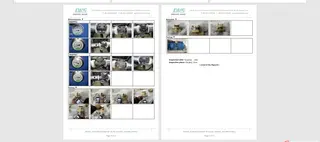

Inspection report
Features
1. It can be installed horizontally or vertically to meet the installation requirements of different pipeline systems;
2. Low fluid resistance and pressure loss contribute to improving system efficiency.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
