ASTM A105N Swing Check Valve, 2 Inch, 150 LB, API 602

Name: ASTM A105N Swing Check Valve, 2 Inch, 150 LB, API 602
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

2 Inch 150 LB check valve is made according to API 602 standards. The valve body is made of ASTM A105N. It has the structural characteristics of a swing type and bolted cover. Its connection mode is NPT.

Request a quote

Quick Detail

Type	Swing Check Valve
Size	2" (DN50)
Pressure	150LB
Connection	NPT
Body Material	ASTM A105N
Design Norm	API 602
Face-to-Face Dimensions	Manufacturer's Std.
Flange Ends Dimensions	ANSI B1.20.1
Test & Inspection Code	API STD.598
Temperature	-29 ~ 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

2 Inch DN50 150 LB Swing Check Valve NPT A105N API 602

Features

1. Prevent media backflow in the pipeline;
2. Excellent performance and more reliable sealing;
3. Widely used in various industries such as petroleum, chemical, pharmaceutical, and power.

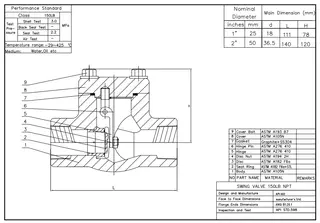

Technical Drawing
