API 602 Forged Steel Ball Check Valve, SW, 1/2 Inch, 800 LB
Key Specifications / Features
API 602 Forged Steel Ball Check Valve Maker: Forged Steel ASTM A105N Ball Check Valve, API 602, 1/2 Inch, Class 800 LB, Non-Return Valve, SW Ends.
Request a quote
Detail Information
1/2 Inch 800 LB Ball Check Valve SW API 602 Forged Steel
floating ball check valve
plastic ball check valve
ball check valve price
flanged ball check valve
Quick Detail
Product Range
Body material: CS, SS, Alloy Steel, CI, Bronze, Brass
Size Range: 2 Inch-12 Inch (DN50-DN300)
End Type: Butt Weld, Socket Weld, Flanged, Screwed
Pressure Range: 150lbs-2500lbs (PN16-PN420)
Temperature Range: -46℃- +425℃

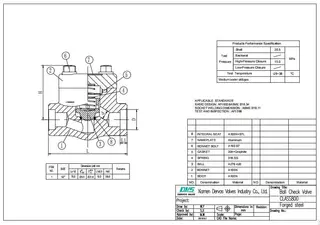

Technical Drawing

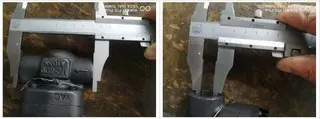

Dimension Check

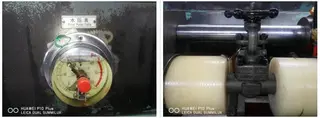

Witness Tests
With Kelly customer service, you will not have any concerns before, during and after buying valves.
Pre-sales
We will reply on time and also provide technical support upon your request.
Order
We will check the production details with the factory and customers. Sales confirmation will also be sent. During production, we will also send weekly reports to let you know the order status. Before shipment, a delivery note will be sent to let you know the situation.
18 Month warranty
Kelly is always responsible for their products. We will provide 18 months warranty to let our customers without concern.
Complaint handling
When receiving the complaints, we will reply within 24 hours and give the solution as soon as possible.
floating ball check valve
plastic ball check valve
ball check valve price
flanged ball check valve
Quick Detail
| Type | Non Return Valve/Check Valve |
| Nominal Size | 1/2 Inch |
| Nominal Pressure | CL800 |
| Construction | Ball Check Valve |
| Connection | Sock Welded |
| Design & Manufacture | API 602 |
| End to End | EN 558 |
| Connection | ASME B16.11 |
| Test & Inspection | API598 |
| Body Material | A105N |
| Applicable Temp | -29℃~38℃ |
| Media | W.O.G. |
Product Range
Body material: CS, SS, Alloy Steel, CI, Bronze, Brass
Size Range: 2 Inch-12 Inch (DN50-DN300)
End Type: Butt Weld, Socket Weld, Flanged, Screwed
Pressure Range: 150lbs-2500lbs (PN16-PN420)
Temperature Range: -46℃- +425℃
Technical Drawing
Dimension Check
Witness Tests
With Kelly customer service, you will not have any concerns before, during and after buying valves.
Pre-sales
We will reply on time and also provide technical support upon your request.
Order
We will check the production details with the factory and customers. Sales confirmation will also be sent. During production, we will also send weekly reports to let you know the order status. Before shipment, a delivery note will be sent to let you know the situation.
18 Month warranty
Kelly is always responsible for their products. We will provide 18 months warranty to let our customers without concern.
Complaint handling
When receiving the complaints, we will reply within 24 hours and give the solution as soon as possible.
