ASTM A105N Lift Check Valve, 1 Inch, 150 LB, API 602, RF
Key Specifications / Features
1 Inch 150 LB ball valve is made according to API 602 standard. The valve body is made of A105 + SS 316. It has the structural characteristics of a bolt cover, lifting type and body valve seat. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 1" |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A105 + SS316 |
| Design Norm | API 602 |
| Face to Face Dimensions | ASME B16.10 |
| End Connection | ASME B16.5 |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Other REQ. | NACE MR0175 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch 150 LB Lift Check Valve RF A105N API 602
Features
1. The valve disc closes quickly and the water hammer pressure is low;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.

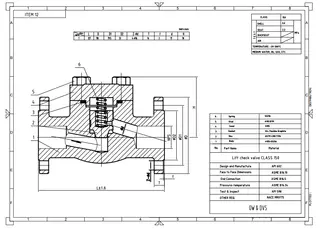

Technical Drawing

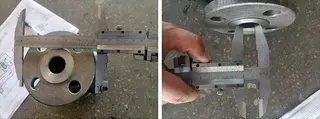

Dimension Checking

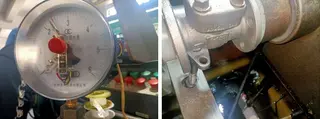

Pressure Testing

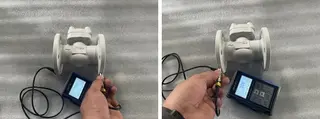

Painting

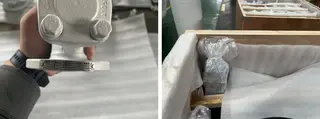

Nameplate & Packing

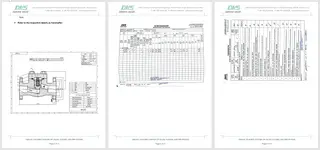

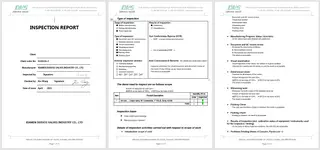

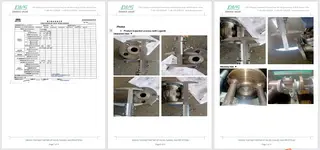

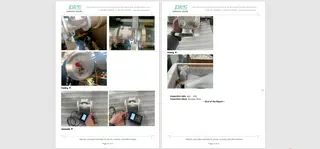

Inspection report
Features
1. The valve disc closes quickly and the water hammer pressure is low;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
