ASTM A105N Globe Valve, SS 304, 1 Inch, 300 LB, API 602, RF
Key Specifications / Features
1 Inch 300 LB globe valve is made according to API 602 standard. The valve body is made of A105N + SS304. It has the structural characteristics of bolted cover and straight through type. Its connection mode is RF integral flange. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Globe Valve |
| Size | 1 Inch |
| Pressure | 300 LB |
| Connection | RF Integral Flange |
| Operation | Hand Wheel |
| Body Material | A105N + SS304 |
| Design Norm | API 602 |
| Face to Face Dimensions | ASME B16.10 |
| End Connection | ASME B16.5 |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch 300 LB Forged Steel Globe Valve RF API 602 Hand Wheel A105N
Features
1. Suitable for a wide range of pressure and temperature;
2. The sealing surface is not easily worn or scratched, and the sealing performance is good.

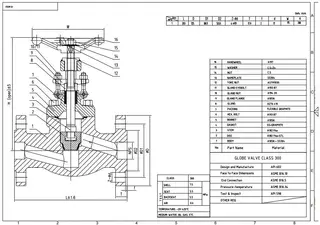

Technical Drawing

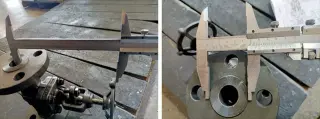

Dimension Checking

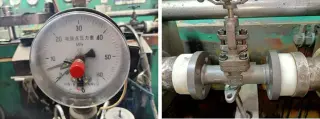

Pressure Testing

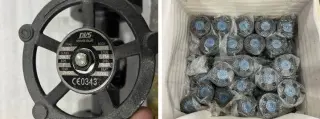

Nameplate & Packing

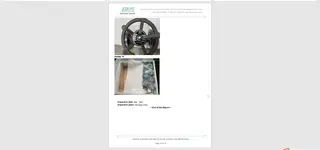

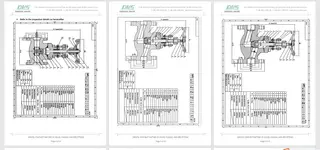

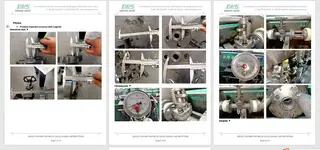

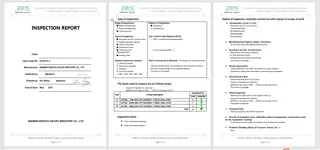

Inspection report
Features
1. Suitable for a wide range of pressure and temperature;
2. The sealing surface is not easily worn or scratched, and the sealing performance is good.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
