3/4 Inch NPT Female Ball Valve, ASME B16.34, A105, 150 LB

Name: 3/4 Inch NPT Female Ball Valve, ASME B16.34, A105, 150 LB
SKU: Kelly-BV-20240906-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 3/4 inch PN16 floating ball valve is crafted to comply with ASME B16.34 standards, featuring a robust ASTM A105 body. It incorporates a floating ball design with a full bore and offers anti-fire and anti-static properties. The valve includes F-NPT connections and operates via a lever mechanism, providing dependable performance and ease of use. As a leading ball valve manufacturer from China, we ensure our valves meet the highest standards of quality and reliability.

Request a quote

Quick Detail

Type	Floating Ball Valve
Size	3/4 Inch, DN20
Pressure	150 LB, PN16
Connection	Female NPT
Operation	Lever
Body Material	ASTM A105
Design Norm	ASME B16.34
End to End Dimension	Manufacturer's Standard
Screwed End	ASME B1.20.1

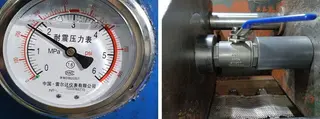

Test & Inspection Code	API 598
Fire Safe Test	API 607
Temperature	-29°C to 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

Forged Steel Floating Ball Valve, ASME B16.34, ASTM A105 Body, Female NPT.

Features

1. The floating ball valve boasts a straightforward structure, making it easy to manufacture and maintain.

2. These valves are versatile and suitable for a range of media, including water, oil, gas, and acidic or alkaline liquids.
