ASME B16.34 Floating Ball Valve, DN20, PN25, A105, NPT

Name: ASME B16.34 Floating Ball Valve, DN20, PN25, A105, NPT
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASME B16.34 Floating Ball Valves, ASME B16.34 Floating Ball Valves, DN20, PN25, ASTM A105, NPT, API 598, Lever Operation, Length 100 MM.

Request a quote

Quick Detail

Type	Floating Ball Valve
Size	DN20
Pressure	PN25
Connection	NPT
Operation	Lever operation
Body Material	A105
Design Norm	ASME B16.34
Screwed End	ANSI B1.20.1
End-to-end dimension	Manufacturer standard
Test & Inspection Code	API 598
Fire safe test	API 607
Temperature	-29 - 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

DN20 PN25 Floating Ball Valve Lever NPT API 598

Introduction

DN20 PN25 floating ball valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105. It has the structural characteristics of a floating ball and a structural length of 100mm. Its connection mode is NPT and its operation mode is lever operation.

Features

1. Ball valve is small in size and light in weight, which is convenient for pipeline installation;
2. Compact structure, reliable sealing, simple structure and convenient maintenance.

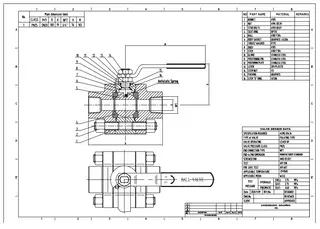

Technical Drawing
