ASME B16.34 Floating Ball Valve, 1 Inch, 600 LB, DN25, PN100
Key Specifications / Features
1 Inch PN100 ball valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105. It has the structural characteristics of a floating ball, full bore, anti-fire and anti-static. Its connection mode is FNPT. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | 1 Inch |
| Pressure | PN100 |
| Connection | FNPT |
| Operation | Lever |
| Body Material | A105 |
| Design Norm | ASME B16.34 |
| End to End Dimension | Manufacturer Standard |
| Screwed End | ANSI B1.20.1 |
| Test & Inspection Code | API 598 |
| Fire Safe Test | API 607 |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch PN100 Floating Ball Valve FNPT A105 Lever ASME B16.34
Features
1. Small size, lightweight, and simple structure;
2. The valve has good sealing performance, low friction coefficient, small operating torque, a diverse selection of valve seat materials, and a wide range of adaptability.

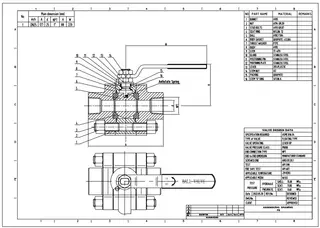

Technical Drawing

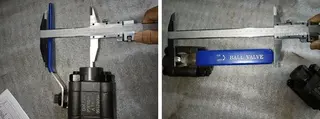

Dimension Checking

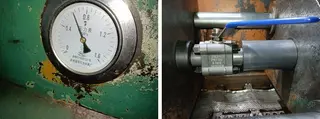

Pressure Testing

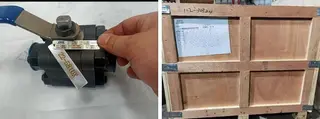

Nameplate & Packing

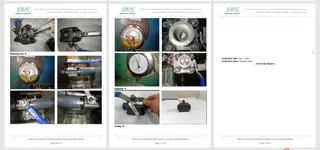

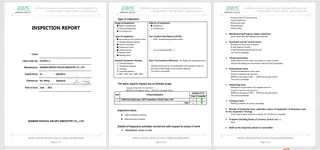

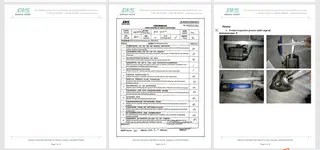

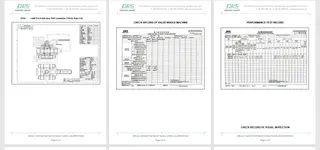

Inspection report
Features
1. Small size, lightweight, and simple structure;
2. The valve has good sealing performance, low friction coefficient, small operating torque, a diverse selection of valve seat materials, and a wide range of adaptability.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
