ISO 17292 Ball Valve, ISO 17292, DN80, PN16, ASTM A105

Name: ISO 17292 Ball Valve, ISO 17292, DN80, PN16, ASTM A105
SKU: Kelly-BV-20240810-04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The DN80 PN16 Ball Valve is engineered in compliance with the ISO 17292 standard, ensuring top-notch performance and reliability. Crafted from durable ASTM A105, the valve body is designed for demanding applications. It features a full bore and fixed ball structure, providing optimal flow with minimal pressure loss. The valve is equipped with anti-fire and anti-static features, enhancing safety during operation. Its connection conforms to the EN 1092-1 B1 standard, ensuring seamless integration with various systems. Operated by a lever, this ball valve offers straightforward and precise control, making it ideal for a range of industrial applications.

Request a quote

Quick Detail

Type	Trunnion Mounted Ball Valve
Size	DN80
Pressure	PN16
Connection	EN 1092-1 B1
Operation	Lever
Body Material	ASTM A105
Design Norm	ISO 17292
End to End	EN 558
End Connection	EN 1092

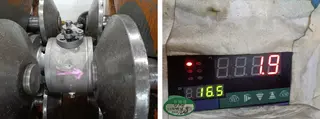

Test & Inspection Code	ISO 5208
Temperature	-29 ~ 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

ASTM A105 Trunnion Mounted Ball Valve, Carbon Steel, ISO 17292, DN80, PN16.

Features

1. Trunnion design enhances structural support, enabling the valve to withstand high pressures and temperatures.

2. It evenly distributed sealing forces reduce stress on seals, leading to better sealing, reduced leakage, and longer seal life.
