Perkins Natural Gas Generator Set, 4008-30TRS1, 425kW 531kVA

Name: Perkins Natural Gas Generator Set, 4008-30TRS1, 425kW 531kVA
SKU: CGS-20250308-GGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Perkins Natural Gas Generator Set Factory offers a powerful and reliable solution for your energy needs. This generator set features a rated power of 425kW (531.25kVA) with a power factor of 0.8, making it highly efficient for industrial applications. It is powered by the robust Perkins 4008-30TRS1 engine, known for its durability and performance. The generator is equipped with a Stamford HCI544D alternator, providing a voltage output of 400/230V at a current of 765A and a frequency of 50Hz.

Request a quote

Detail Information

Product Item: Natural Gas Generator Set
Fuel Type: Natural Gas
Engine: Perkins 4008-30TRS1
Alternator Model: Stamford HCI544D
Rated Power: 425kW, 531.25kVA
Rated Speed/Frequency: 1500 RPM/50Hz
Rated Voltage: 400/230V
Rated Current: 765A
Power Factor: 0.8
Phase/Wire: 3 Phase/4 Wire
Overall Size (L×W×H): 4380*1850*2350 mm
Weight: 6591 kg

Engine Specifications

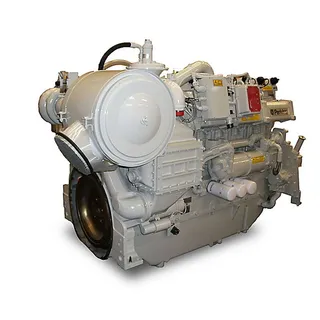

Engine Model	Perkins 4008-30TRS1
Air Intake System	Turbo Intercooled
Cooling System	Closed Cooling Cycle
Number of Cylinders	8
Displacement	30.56 L
Bore × Stroke	160 × 190 mm
Max. Standby Power @ 50Hz	468kW, 585kVA

Alternator Specifications

Alternator Model	STAMFORD HCI544D
Rated Power	440kW, 550kVA
Excitation System	Brushless and Self-Exciting
Voltage Control	AVR (Automatic Voltage Regulation)
Insulation Class	H
Protection Grade	IP23

Fuel Requirements

Methane Content	≥92%
Gas Low Heat Value	≥33 MJ/Nm³
Sulfur Content	≤200 PPM
Impurities Size	≤5μm
Impurities Content	≤50 mg/Nm³
Water Content	≤40 g/Nm³
