500kW Natural Gas Generator Set, Perkins 4008-30TRS2, 902 A

Name: 500kW Natural Gas Generator Set, Perkins 4008-30TRS2, 902 A
SKU: CGS-20250312-GGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 50 Hz Natural Gas Generator Set from a reputable supplier features the Perkins 4008-30TRS2 engine paired with the Stamford S5L1D-F41 alternator. This generator set delivers a rated power of 500kW (625kVA), operating at 400/230 V with a current output of 902 A. Designed for efficient and reliable performance, it is an excellent solution for applications requiring clean and sustainable power generation using natural gas.

Request a quote

Detail Information

Product Name: 500kW 625kVA Natural Gas Generator Set, Fuel-efficent
Fuel: Natural Gas
Engine: Perkins 4008-30TRS2
Alternator: Stamford S5L1D-F41
Power Factor: 0.8
Rated Power: 500kW, 625kVA
Speed/Frequency: 1500 rpm/50 Hz
Voltage: 400/230 V
Rated Current: 902 A
Starting Mode: 24V DC Electric Starting
Dimensions (L × W × H): 5225 * 2352 * 2223 mm
Weight: 5538 kg

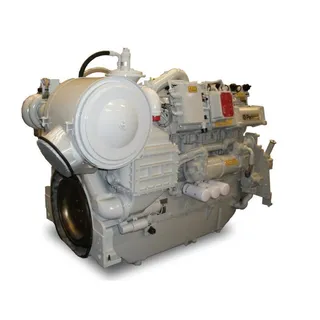

Engine Data

Brand	Perkins
Model	4008-30TRS2
Air Intake Way	Turbocharged, Air-Cooled
Cooling Way	Closed Cooling Cycle
Cylinder / Arrangement	8 Cylinders/Inline (L)
Displacement	30.56 L
Bore	160 mm
Stroke	190 mm
Compression Ratio	12.0 : 1
Rated RPM @ 50Hz	1500 rpm
Max. Standby Power @ 50Hz	526 kW
Governor	Electronic
Dimensions (L × W × H)	2658 * 1633 * 1671 mm
Weight	3350 kg

Perkins Generator Set Complete Systems

Air Intake System	Engine Air Flow	2366 m³/hr
Exhaust System	Exhaust Gas Flow	6215 m³/hr
	Exhaust Temperature	485 ± 25°C
	Max. Back Pressure	10 kPa
Fuel System	Fuel Type	Natural Gas
	Fuel Supply Pressure	20 - 50 kPa
	Main Composition	≥ 55%
	Baseload Rating	2.50 kJ / kWs
	Fuel Consumption at Rated Load	136.3 m³/hr
Lubrication System	Oil Consumption @ 100% Load	≤ 0.14 g/kWhr
	Total Oil Capacity	165.6 L
	Brake Oil Pressure	1370 kPa
Cooling System	Coolant Capacity	48 L
	Thermostat Temperature Range	83 – 95°C
	Max. Water Temperature	100°C

Alternator Data

Brand	Stamford
Model	S5L1D-F41
Rated Power	536kW, 670kVA
Voltage Classes	400/230 V
Phase	3 Phase
Power Factor	0.8
Excitation Way	Self-Excited
AVR Type	AS440
Rated Ambient Temperature	40°C
Bearing Number	1
Poles	4
Insulation Class	H
Temperature Rise	H
Protection	IP23
Altitude	≤ 1000 m
Overspeed	2250 rpm
THD (Total Harmonic Distortion)	< 5%
THF (Telephone Harmonic Factor)	< 2%
TIF (Telephone Influence Factor)	< 50

Controller Specification

Operating Voltage	12V/24V
Operating Current (12V)	380 mA
Operating Current (24V)	188 mA
Operating Temperature	-25°C to 70°C
Relative Humidity	20% - 93% RH
IP Rating (Front)	IP65
IP Rating (Back)	IP20
Mounting Hole Size	214 × 160 mm
Net Weight	0.85 kg
