MNPT End Gate Valve, 1 Inch, 800 LB, ASTM A105N, API 602
Key Specifications / Features
1 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of A105N. It has the structural characteristics of bolt cover, rising stem, bracket and structural length of 311mm. Its connection mode is MNPT. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Gate Valve |
| Size | 1 Inch |
| Pressure | 800 LB |
| Connection | MNPT |
| Operation | Handwheel |
| Body Material | ASTM A105N |
| Design Norm | API 602 |
| Face to Face Dimensions | MFG'S |
| End Connection | ASME B1.20.1 |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
1 Inch 800 LB Forged Steel Gate Valve MNPT A105N API 602 Handwheel
Features
1. Compact structure, reliable sealing, and stable operation;
2. Low fluid resistance, applicable pressure, and temperature range, an unrestricted flow direction of the medium.

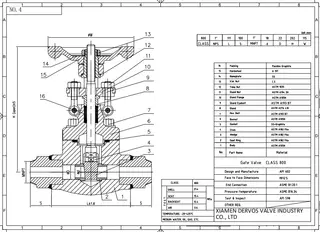

Technical Drawing

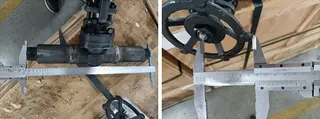

Dimension Checking

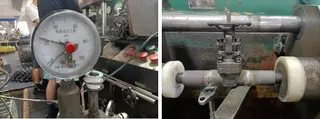

Pressure Testing

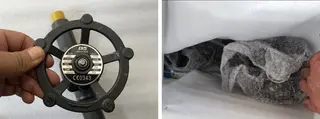

Nameplate & Packing

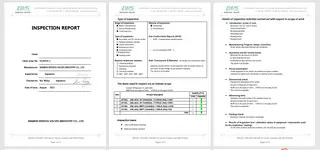

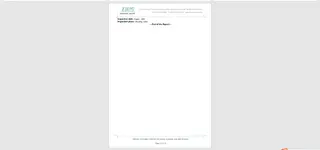

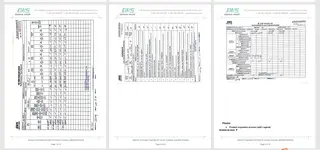

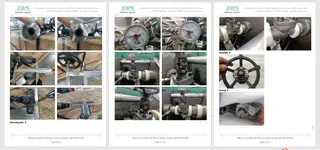

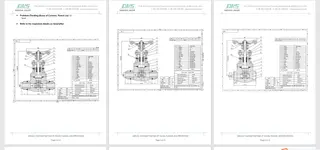

Inspection report
Features
1. Compact structure, reliable sealing, and stable operation;
2. Low fluid resistance, applicable pressure, and temperature range, an unrestricted flow direction of the medium.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
