ASTM A105N Gate Valve, 2 IN, 800 LB, API 602, SW, HandWheel
Key Specifications / Features
2" 800 LB gate valve is made according to API 602 standard. The valve body is made of A105N. It has the structural characteristics of bolted cover and rigid wedge. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Gate Valve |
| Size | 2" |
| Pressure | 800LB |
| Connection | SW |
| Operation | Hand Wheel |
| Body Material | A105N |
| Design Norm | API 602 |
| Socket Welding Dimension | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 38°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
2 Inch 800 LB Forged Steel Gate Valve SW A105N API 602 Hand Wheel
Features
1. Low fluid resistance, less external force required for opening and closing, and unrestricted flow direction of the medium;
2. The body shape is relatively simple and the manufacturing process is good.

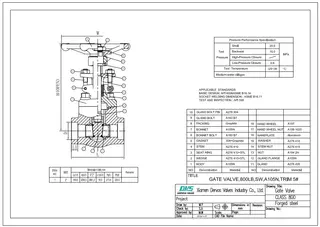

Technical Drawing

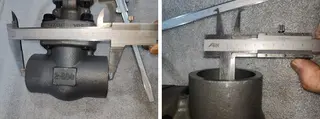

Dimension Checking

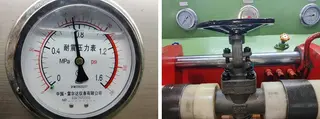

Pressure Testing

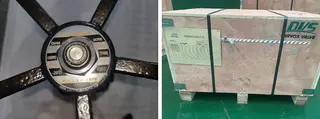

Nameplate & Packing

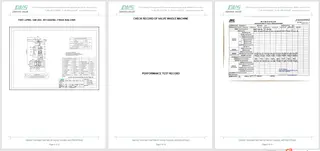

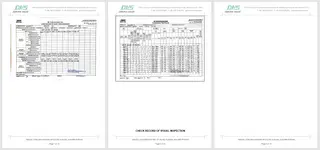

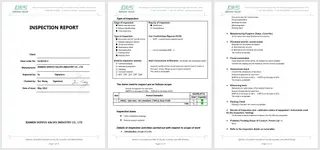

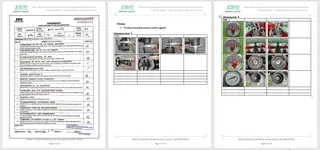

Inspection report
Features
1. Low fluid resistance, less external force required for opening and closing, and unrestricted flow direction of the medium;
2. The body shape is relatively simple and the manufacturing process is good.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
