ISO 17292 Floating Ball Valve, ASTM A105, DN25, PN63
Key Specifications / Features
DN25 PN63 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball, full bore, anti-fire, anti-static, and anti-flying valve stem. Its connection mode is EN 1092-1 D. And it has lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Ball Valve |
| Size | DN25 |
| Pressure | PN63 |
| Connection | EN1092-1 D |
| Operation | Lever |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| Ends Connection | LG |
| Connection Ends | EN1092-1 D |
| Fire Safe Design | API 607 |
| F-F Dimension | EN 558 Gr1 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN25 PN63 Floating Ball Valve A105 Lever EN 1092-1 D
Features
1. Small in size, light in weight, and simple in structure, the sphere has a free-floating function, ensuring good sealing;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.

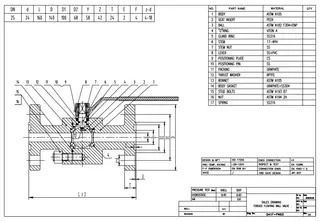

Technical Drawing

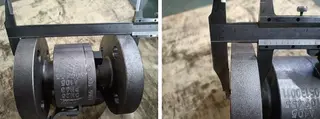

Dimension Checking

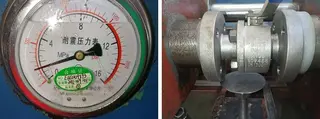

Pressure Testing

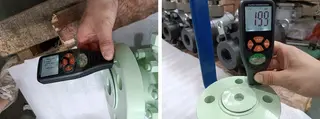

Painting

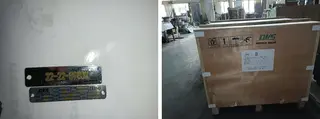

Nameplate & Packing

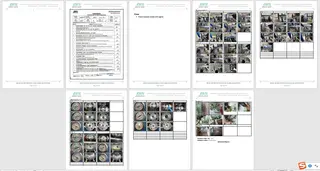

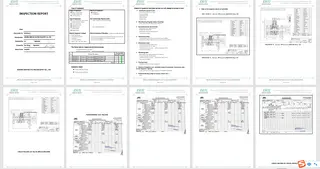

Inspection report
Features
1. Small in size, light in weight, and simple in structure, the sphere has a free-floating function, ensuring good sealing;
2. Compact structure, reliable sealing, simple structure, and convenient maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
