ASTM A105 Floating Ball Valve, 1 Inch, 300 LB, API 608

Name: ASTM A105 Floating Ball Valve, 1 Inch, 300 LB, API 608
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Get top-quality ASTM A105 floating ball valves from a trusted provider. Our valves feature a 1-inch size, 300 LB pressure rating, and comply with API 608 standards. With DN25 and PN50 specifications, these valves are designed for reliable performance. They come with RF ends and lever operation for easy control. Additionally, our valves are equipped with anti-fire and anti-static features, ensuring safety and efficiency. Explore our range of ASTM A105 floating ball valves for your industrial needs.

Request a quote

Quick Detail

Type	Ball Valve
Size	1"
Pressure	300LB
Connection	RF (125-250 μin)
Operation	Lever
Body Material	A105
Design Norm	API 608
Temp. & Pressure	ASME B16.34
Face to Face	ASME B16.10
End Flange Dimension	ASME 16.5
Fire Safe	API 607
Temperature	-29 ~ 200°C
Applicable Medium	Water, Oil and Gas

Detail Information

1 INCH 300 LB Floating Ball Valve A105 RF API 608 Lever

Introduction

1 INCH 300 LB ball valve is made according to API 608 standard. The valve body is made of A105. It has the structural characteristics of reduced diameter, floating ball, anti-fire, anti-static, and anti-flying stem design. Its connection mode is RF (125-250 μin). And it has a lever operation mode.

Features

1. Compact structure, reliable sealing, simple structure, and convenient maintenance;
2. Not easily eroded by media, easy to operate and maintain, suitable for general working media such as water, oil, and natural gas.

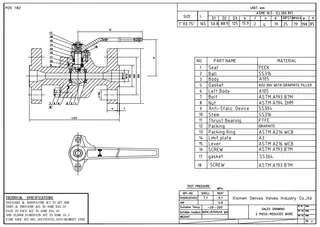

Technical Drawing
