EN 593 Concentric Butterfly Valves, A216 WCB, DN300, PN10

Name: EN 593 Concentric Butterfly Valves, A216 WCB, DN300, PN10
SKU: Kelly-BTV-20241206-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The DN300 PN10 concentric butterfly valve is designed per EN 593 standards, featuring a robust ASTM A216 WCB body. With a midline structure and a compact structural length of 82mm, it ensures efficient flow control. The valve's wafer connection allows for easy installation, while the turbine operation mode provides smooth and precise actuation. This design makes it a reliable and versatile choice for various industrial applications.

Request a quote

Quick Detail

Type	Concentric Butterfly Valve
Size	DN300
Pressure	PN10
Connection	Wafer
Operation	Turbine Operation
Body Material	ASTM A216 WCB
Design Norm	EN 593
Face to Face	EN 558-1
End Flange	EN 1092 / ANSI B 16.5
Top Flange	ISO 5211
Test & Inspection Code	EN 12266
Applicable Medium	Water, Oil and Gas

Detail Information

Concentric Butterfly Valve, EN 593, ASTM A216 WCB, Wafer.

Features

1. Compact and Lightweight Design:
Engineered with a streamlined structure and minimal components, this valve is lightweight and ideal for systems with limited installation space.

2. Optimized Flow Efficiency:
Featuring a streamlined flow passage, the valve minimizes fluid resistance, enhancing energy efficiency during operation.

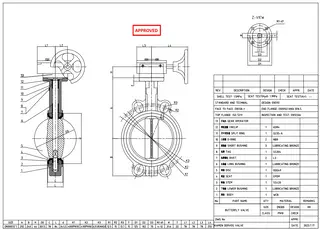

Technical Drawing
