API 609 Concentric Butterfly Valve, DN350, PN10, EN 593

Name: API 609 Concentric Butterfly Valve, DN350, PN10, EN 593
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

API 609 Concentric Butterfly Valve Supplier: Concentric Butterfly Valve, API 609, DN350, PN10, EN 593, Lug Type, ASTM A216 WCB, Gearbox Operated.

Request a quote

Detail Information

On this page

DN350 PN10 Concentric Butterfly Valve Lug Type API 609

DN350 PN10 Concentric Butterfly Valve Lug Type API 609

Concentric Butterfly Valves, Lug type, Lug Butterfly Valve

Quick Detail

Type	Butterfly Valve
Size	DN350
Pressure	PN10
Structure	Concentric, Soft Seated
Connection Type	Lug Type
Operation	Gearbox Operated
Design Code	EN 593
Face to Face	AEN558-1
End Flange	EN 1092
Test & Inspection	EN 12266
Body Material	ASTM A216 WCB
Seat Material	NBR
Application	Water, Oil, Gas

Features
• Symmetric disc design ensures favorable flow characteristics and low-pressure drop
• Concentric shaft ensures low operating torque
• Lining gives good protection to the valve body and acts as a flange gasket
- Shaft penetrates the valve seat
- Limited choice of seating materials(Elastomer, only)

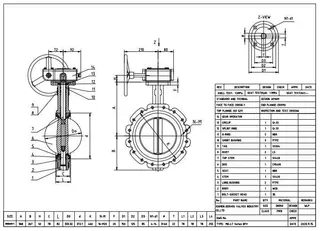

Technical Drawing

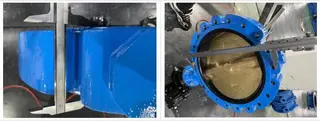

Dimension Check

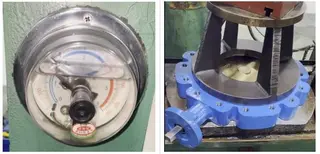

Witnessing Tests

FAQ

1. Can the orders always be delivered on time?
Our purchasing team follows up very closely with each order to make sure on-time delivery for most of the orders. In 2018, more than 90% of orders were delivered on time, and we are dedicated to doing better.

2. What's the normal delivery lead time?
For normal material, usually, the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?
With our numerous suppliers, different price levels are available with us, so we are able to help you win more customers from different markets requesting high, medium and low prices.
