ASTM A351 CF8M Wafer Butterfly Valve, 4IN, CL150, API 609, Lever
Key Specifications / Features
4 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of CF8M. It has the structural characteristics of double eccentricity and high performance. Its connection mode is wafer. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Butterfly Valve |
| Size | 4 Inch |
| Pressure | 150 LB |
| Connection | Wafer |
| Operation | Lever |
| Body Material | ASTM A216 WCB |
| Design Norm | API 609 |
| Temperature & pressure | ASME B16.34 |
| Flange Size | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 180°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4 Inch 150 LB Double Eccentric Butterfly Valve CF8M Wafer API 609 Lever
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.

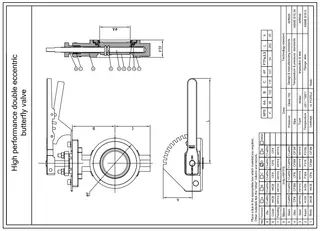

Technical Drawing

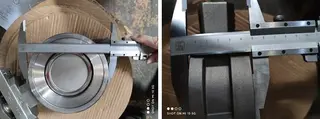

Dimension Checking

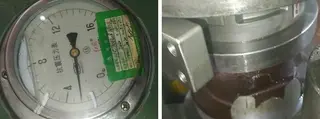

Pressure Testing

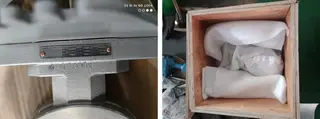

Nameplate & Packing

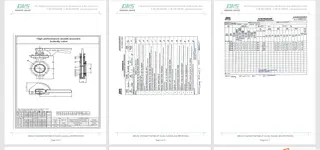

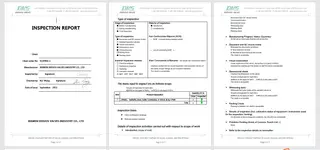

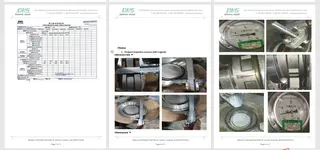

Inspection report
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
