Concentric Butterfly Valve, 2 Inch, 150 LB, API 609, Wafer
Key Specifications / Features
2 Inch 150 LB concentric butterfly valve is made according to API 609 standards. The valve body is made of Ductile Iron. It has the structural characteristics of center line. Its connection mode is wafer.
Request a quote
Quick Detail
Product Description
| Type | Concentric Butterfly Valve |
| Size | 2 Inch |
| Pressure | 150 LB |
| Connection | Wafer |
| Body Material | DI |
| Design Norm | API 609 |
| End Flange | EN 1092, ANSI B16.5a |
| Face to Face | EN 558-1 |
| Top Flange | ISO 5211 |
| Test & Inspection Code | EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
Wafer Connection, 2 Inch 150 LB Concentric Butterfly Valve, Body DI, API 609
Features
1. It can choose suitable materials based on the medium and working conditions, and has good corrosion resistance and wear resistance;
2. Reasonably designed, finely manufactured, with a longer service life, reducing the frequency of maintenance and replacement.

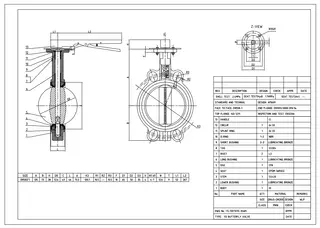

Technical Drawing

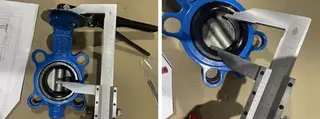

Dimension Checking

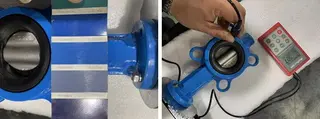

Painting

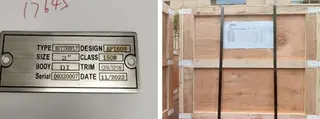

Nameplate & Packing

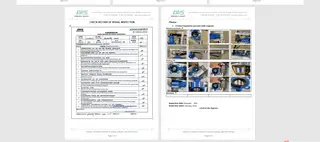

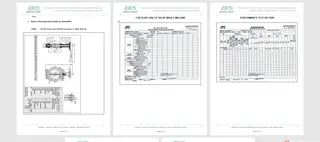

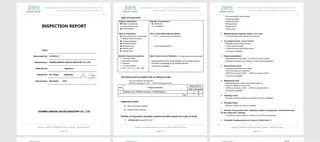

Inspection report
Features
1. It can choose suitable materials based on the medium and working conditions, and has good corrosion resistance and wear resistance;
2. Reasonably designed, finely manufactured, with a longer service life, reducing the frequency of maintenance and replacement.
Technical Drawing
Dimension Checking
Painting
Nameplate & Packing
Inspection report
