ASTM A995 5A Lubricated Plug Valve, 2 Inch, 900 LB, API 6D
Key Specifications / Features
2 Inch 900 LB plug valve is made according to API 6D standard. The valve body is made of ASTM A995 5A. It has the structural characteristics of oil-sealed and full bore. Its connection mode is RF Flanged Ends. And it has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Plug Valve |
| Size | 2 Inch |
| Pressure | 900 LB |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A995 5A |
| Design Norm | API 6D |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature | ASME B16.34 |
| Fire Safe | API 6FA |
| Test & Inspection Code | API 598 |
| Temperature | ≤80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
2 Inch 900 LB Lubricated Plug Valve RF 5A API 6D Lever
Features
1. Simple structure, relatively small size, light weight, and easy maintenance;
2. Suitable for frequent operation, quick and lightweight opening and closing.

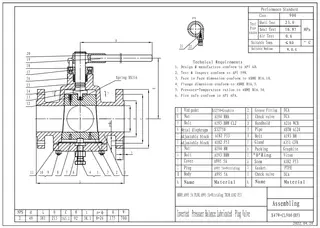

Technical Drawing

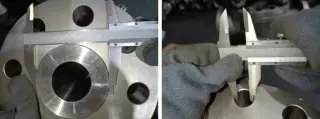

Dimension Checking

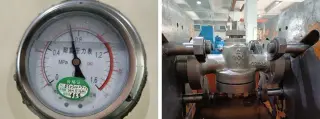

Pressure Testing

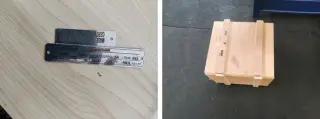

Nameplate & Packing

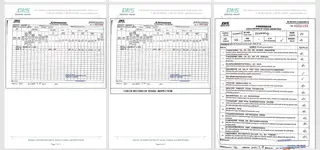

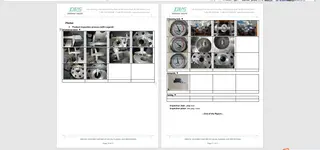

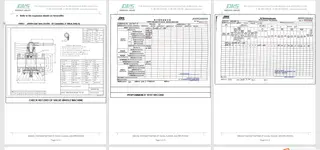

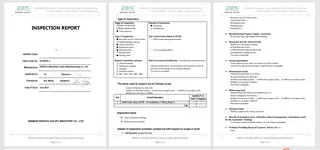

Inspection report
Features
1. Simple structure, relatively small size, light weight, and easy maintenance;
2. Suitable for frequent operation, quick and lightweight opening and closing.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
