API 6D Lubricated Plug Valve, 2 Inch, 300 LB, ASTM A216 WCB, RF
Key Specifications / Features
2 Inch 300 LB plug valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of an inverted pressure balancing type. Its connection mode is RF. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Plug Valve |
| Size | 2 Inch |
| Pressure | 300 LB |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A216 WCB |
| Design & Manufacture | API 6D |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature | ASME B16.34 |
| Fire Safe | API 6FA |
| Test & Inspection Code | API 598 |
| Temperature | ≤80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
2 Inch 300 LB Lubricated Plug Valve RF WCB API 6D Lever
Features
1. Inverted Pressure Balance: Valve design ensures balanced operation under pressure from different directions;
2. Utilizing special sealing structures to ensure effective prevention of fluid leakage when the valve is closed.

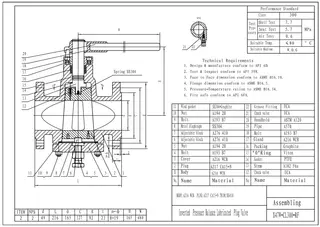

Technical Drawing

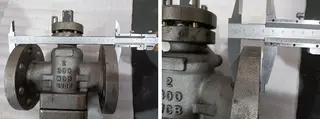

Dimension Checking

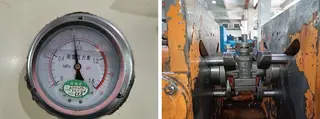

Pressure Testing

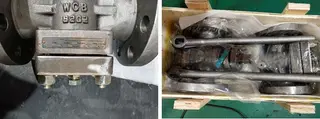

Nameplate & Packing

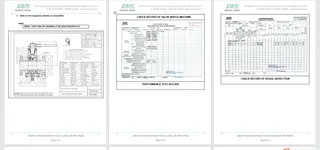

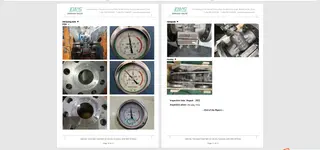

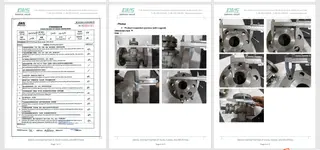

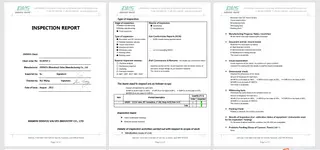

Inspection report
Features
1. Inverted Pressure Balance: Valve design ensures balanced operation under pressure from different directions;
2. Utilizing special sealing structures to ensure effective prevention of fluid leakage when the valve is closed.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
