ASTM A216 WCB Lubricated Plug Valve, API 6D, 2 Inch, 900 LB
Key Specifications / Features
2 Inch 900 LB plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted pressure balance and reduced diameter. Its connection mode is RTJ. And it has lever operation mode.
Request a quote
Detail Information
API 6D Lubricated Plug Valve ASTM A216 WCB 2 Inch 900 LB
Product Description
Features
1. For frequent operation, quick and lightweight opening and closing;
2. Low fluid resistance, simple structure, relatively small volume, light weight, and easy maintenance;
3. The flow direction of the medium can be arbitrary without being limited by the installation direction.

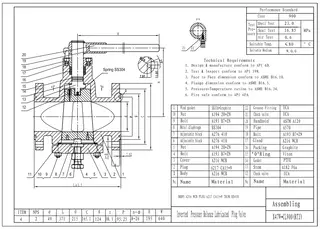

Technical Drawing

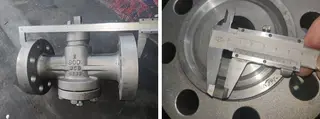

Dimension Checking

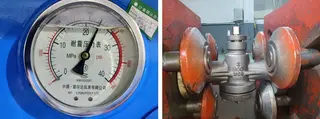

Pressure Testing

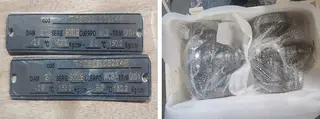

Nameplate & Packing

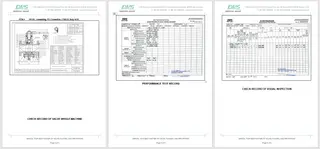

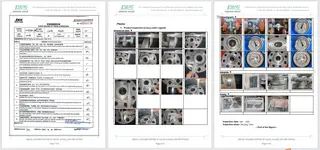

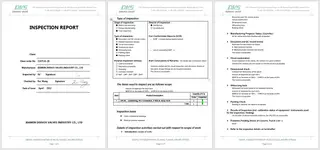

Inspection report
Product Description
| Type | Plug Valve |
| Size | 2 Inch |
| Pressure | 900LB |
| Connection | RTJ |
| Operation | Lever |
| Body Material | A216 WCB |
| Design Norm | API 6D |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature Ration | ASME B16.34 |
| Fire Safe | APl 6FA |
| Test & Inspection Code | API 598 |
| Temperature | ≤80°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. For frequent operation, quick and lightweight opening and closing;
2. Low fluid resistance, simple structure, relatively small volume, light weight, and easy maintenance;
3. The flow direction of the medium can be arbitrary without being limited by the installation direction.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
